Flooring Oddz and Endz provides different flooring trims in a vast range of colours and styles. You can view the different trims available and our extensive colour range here. Alternatively, you can view an individual colour range by simply clicking one of the colour swatches below.

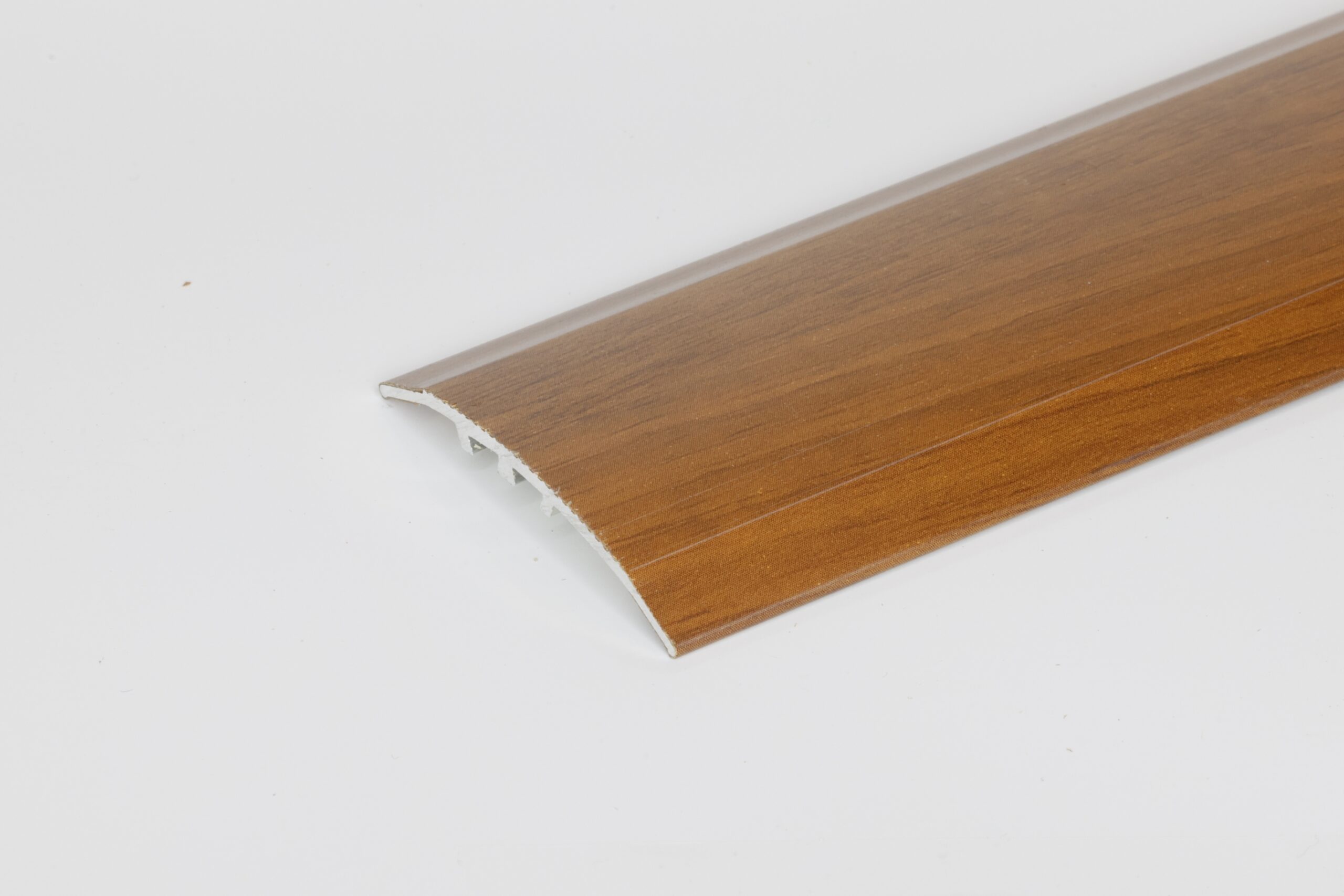

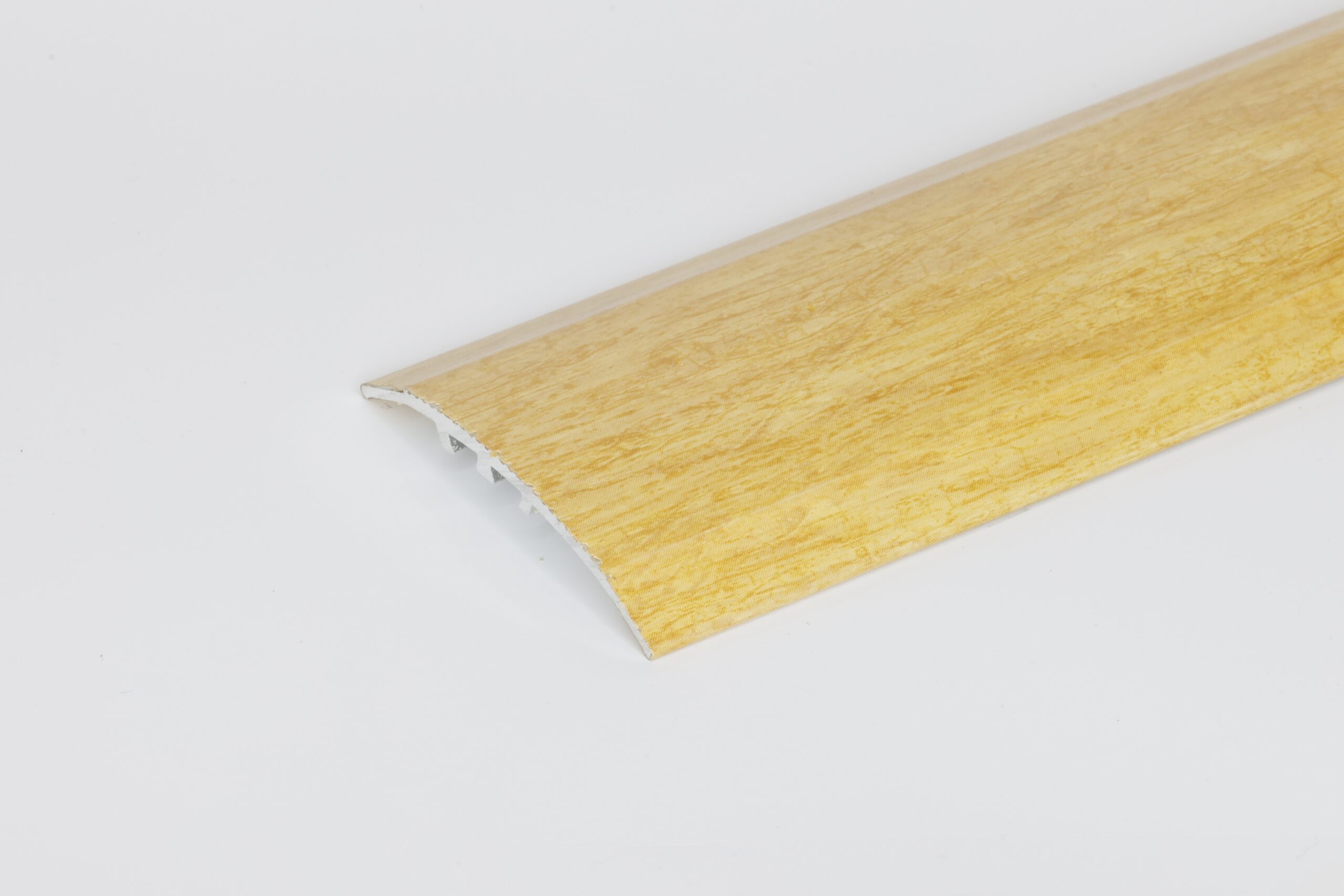

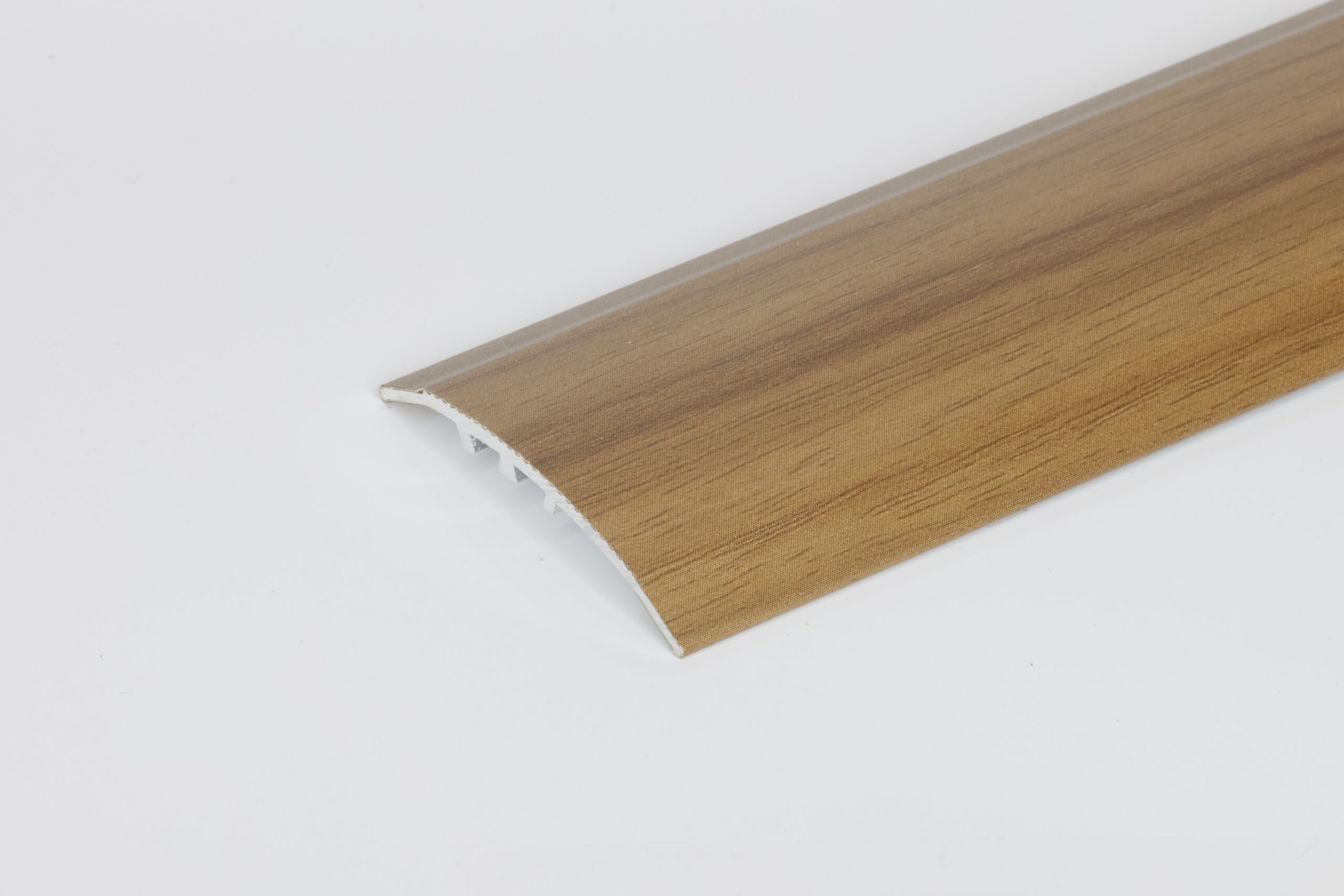

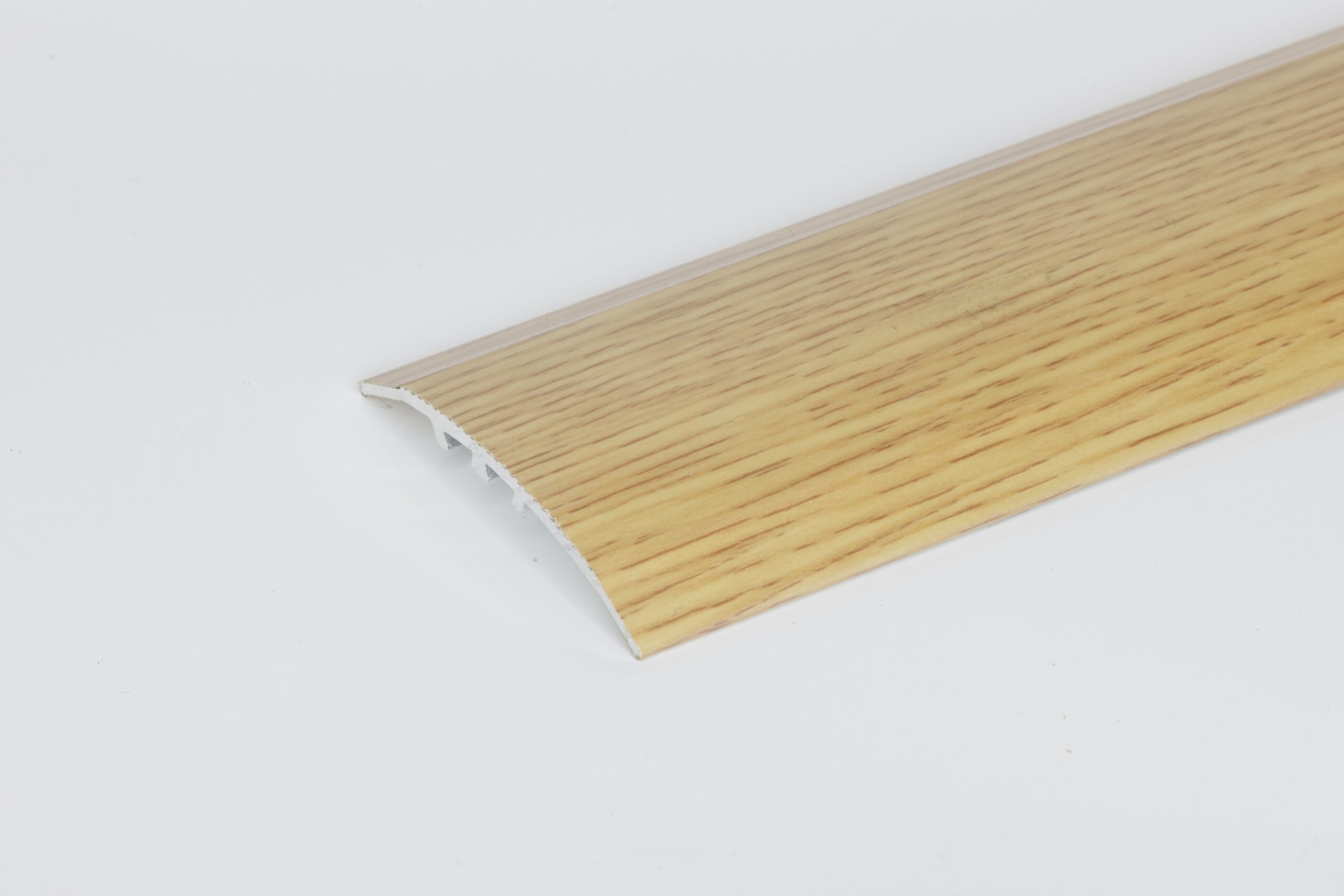

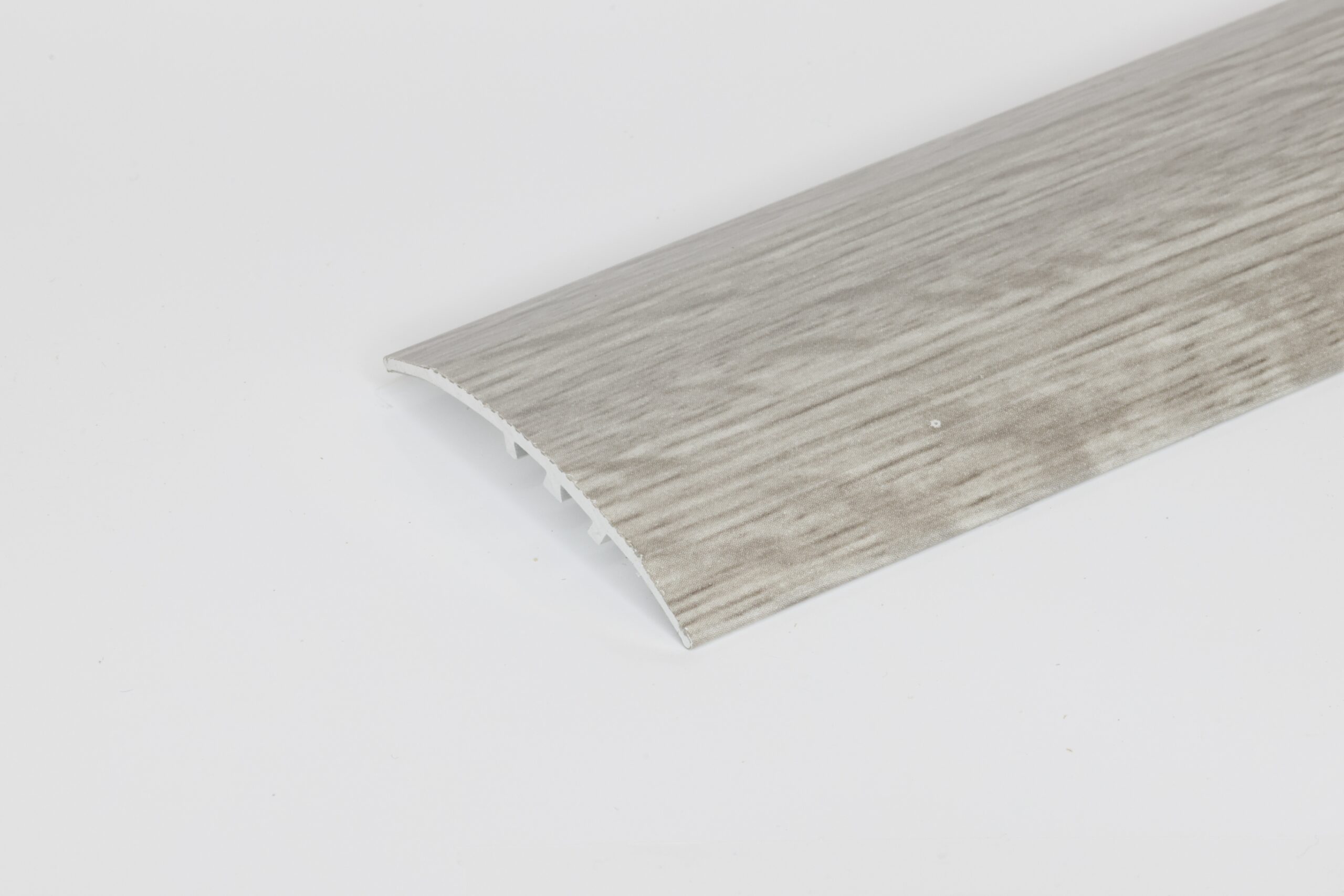

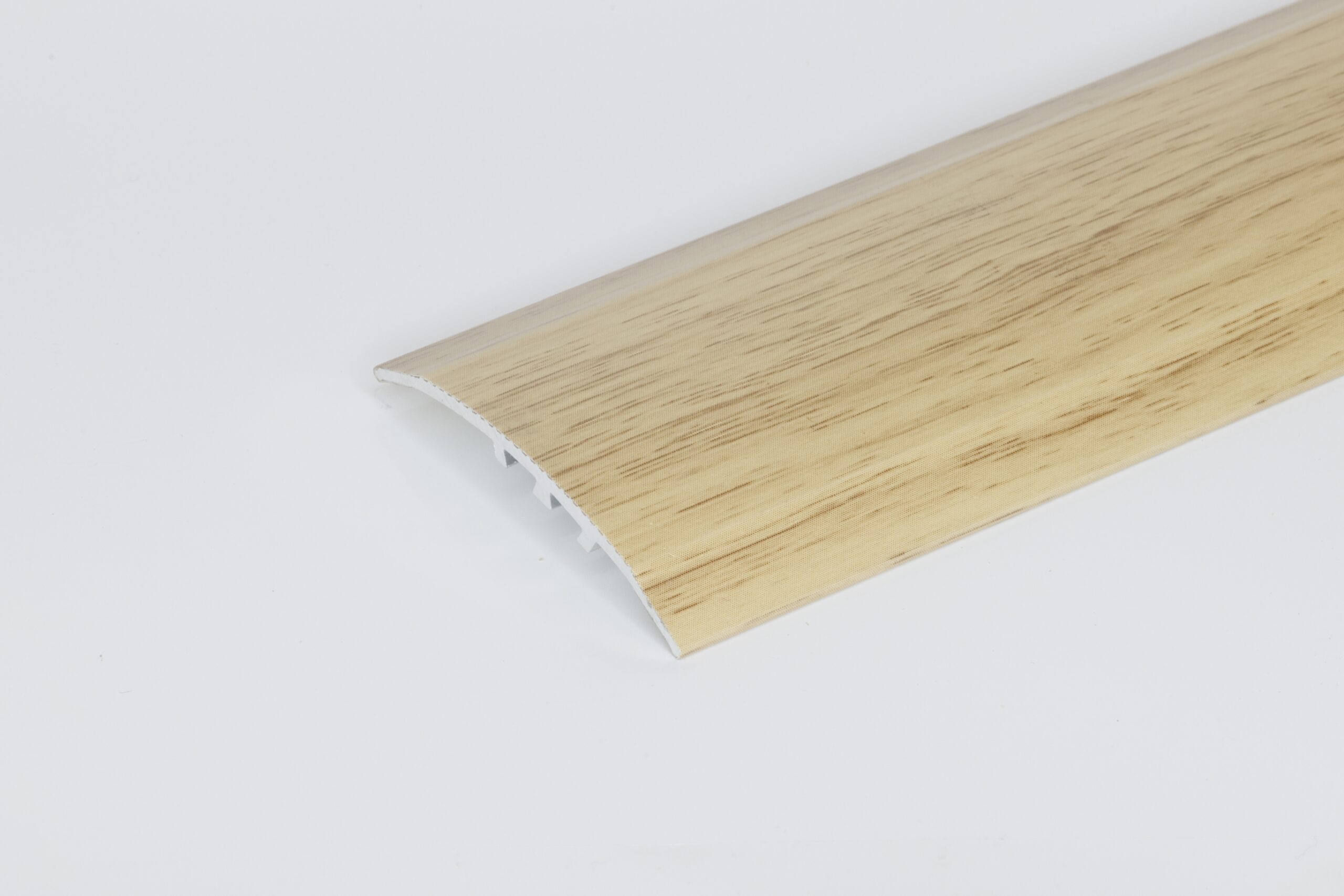

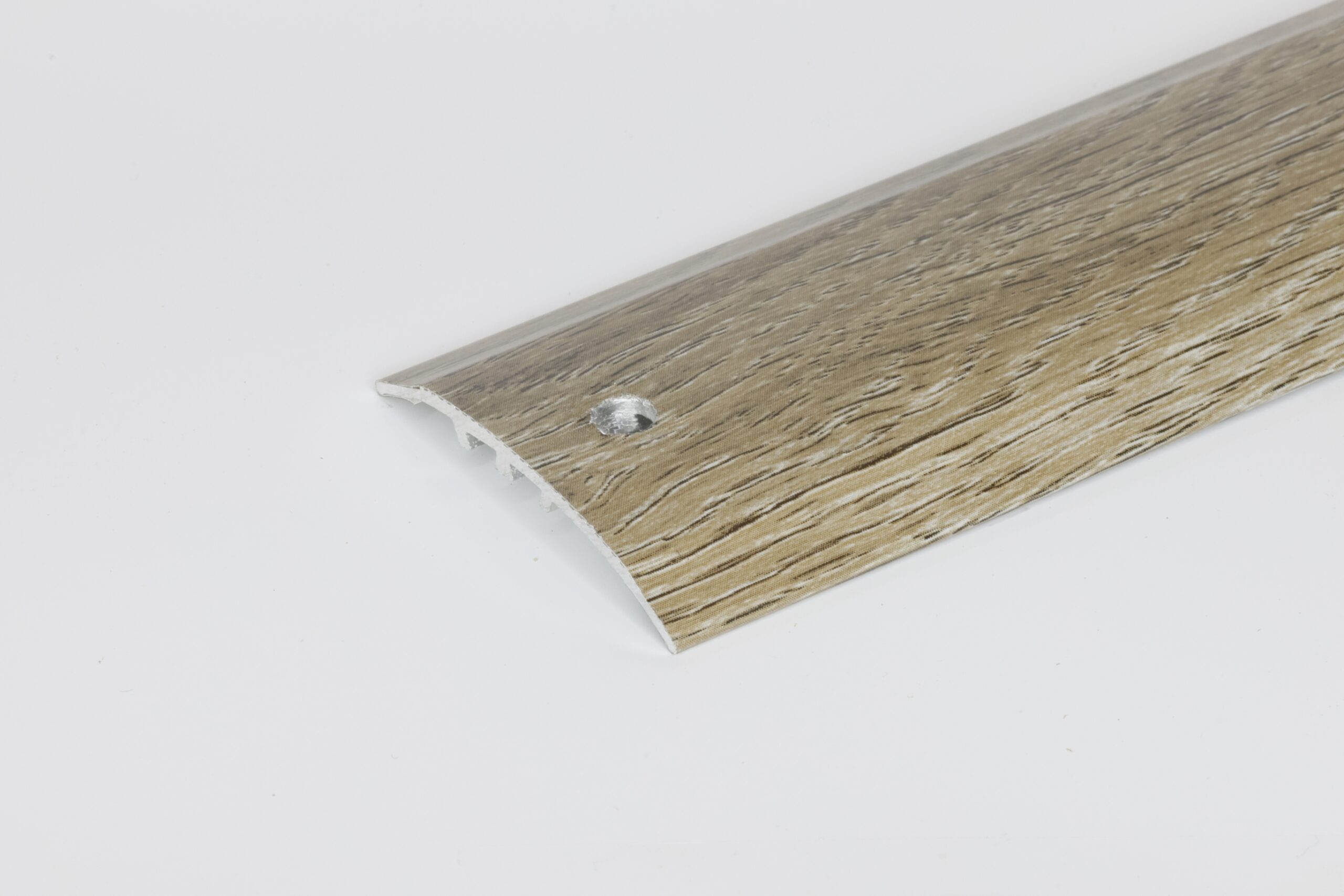

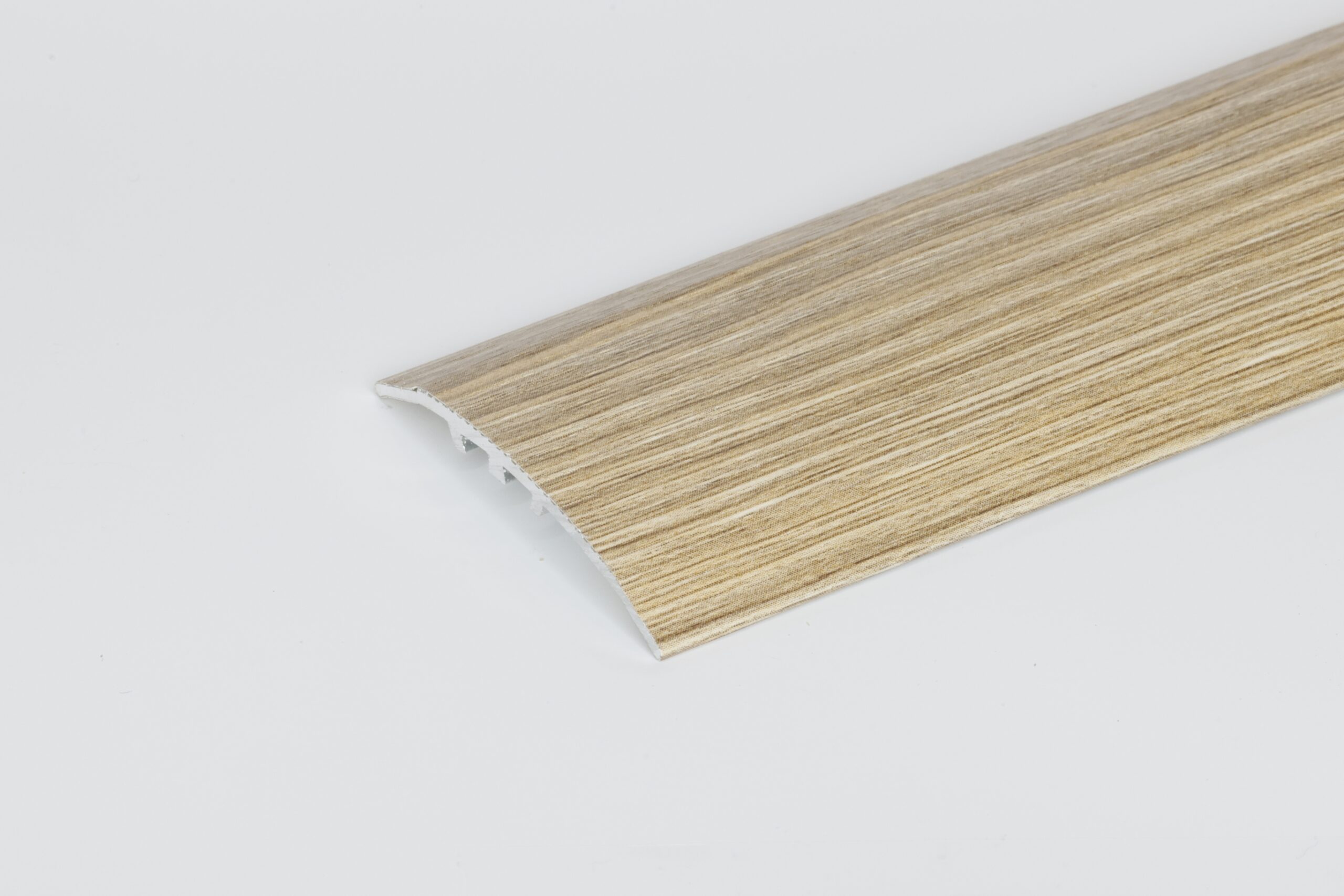

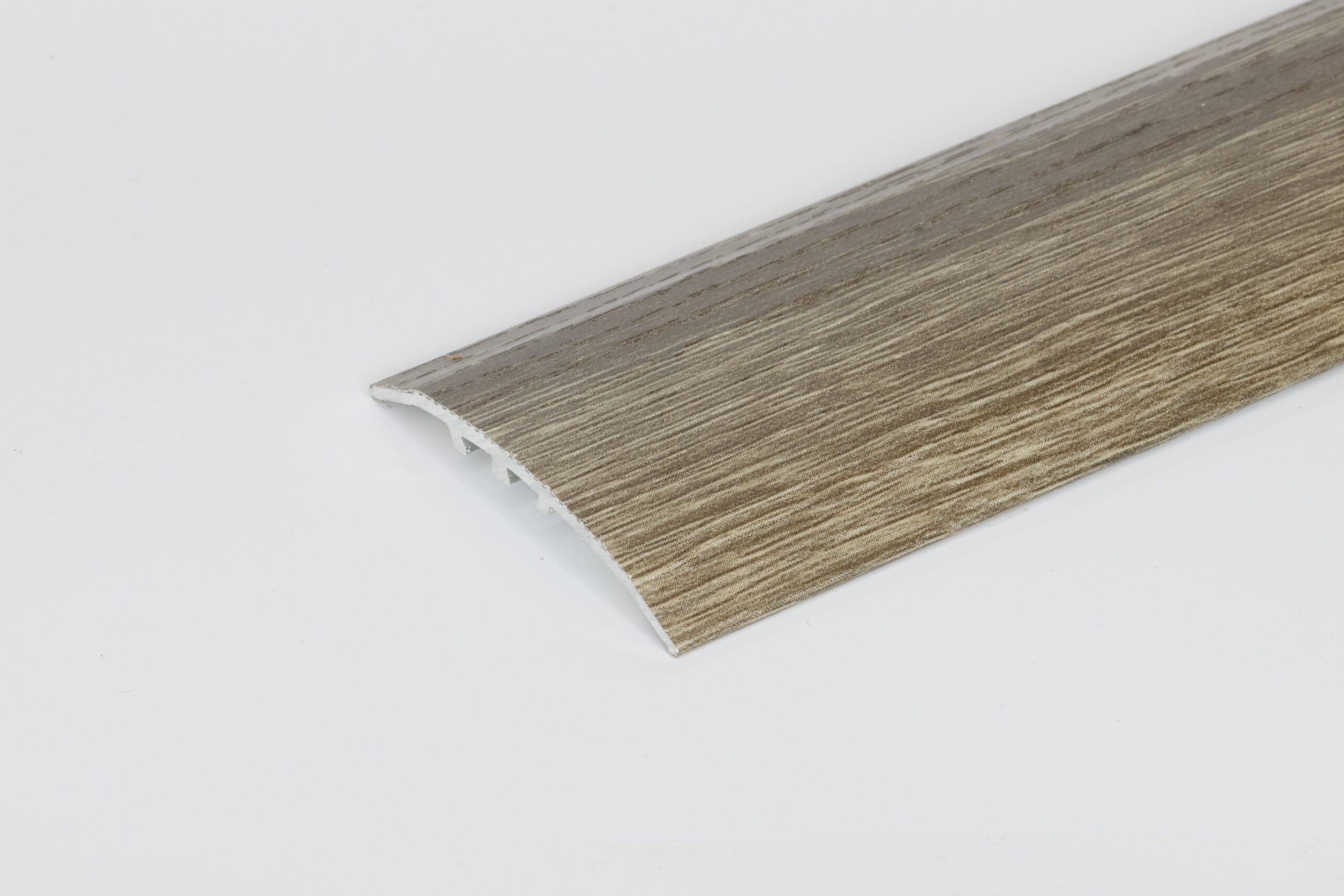

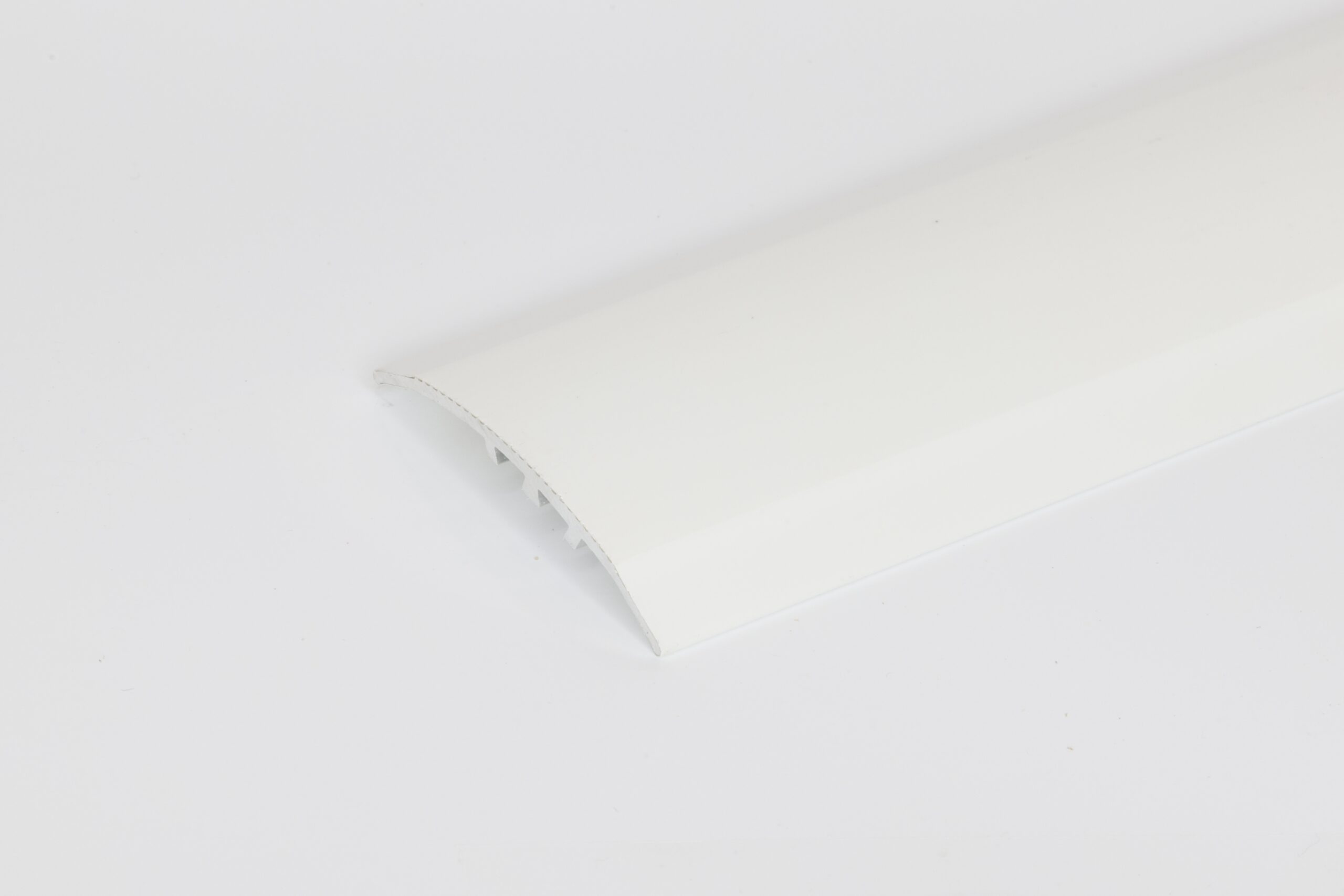

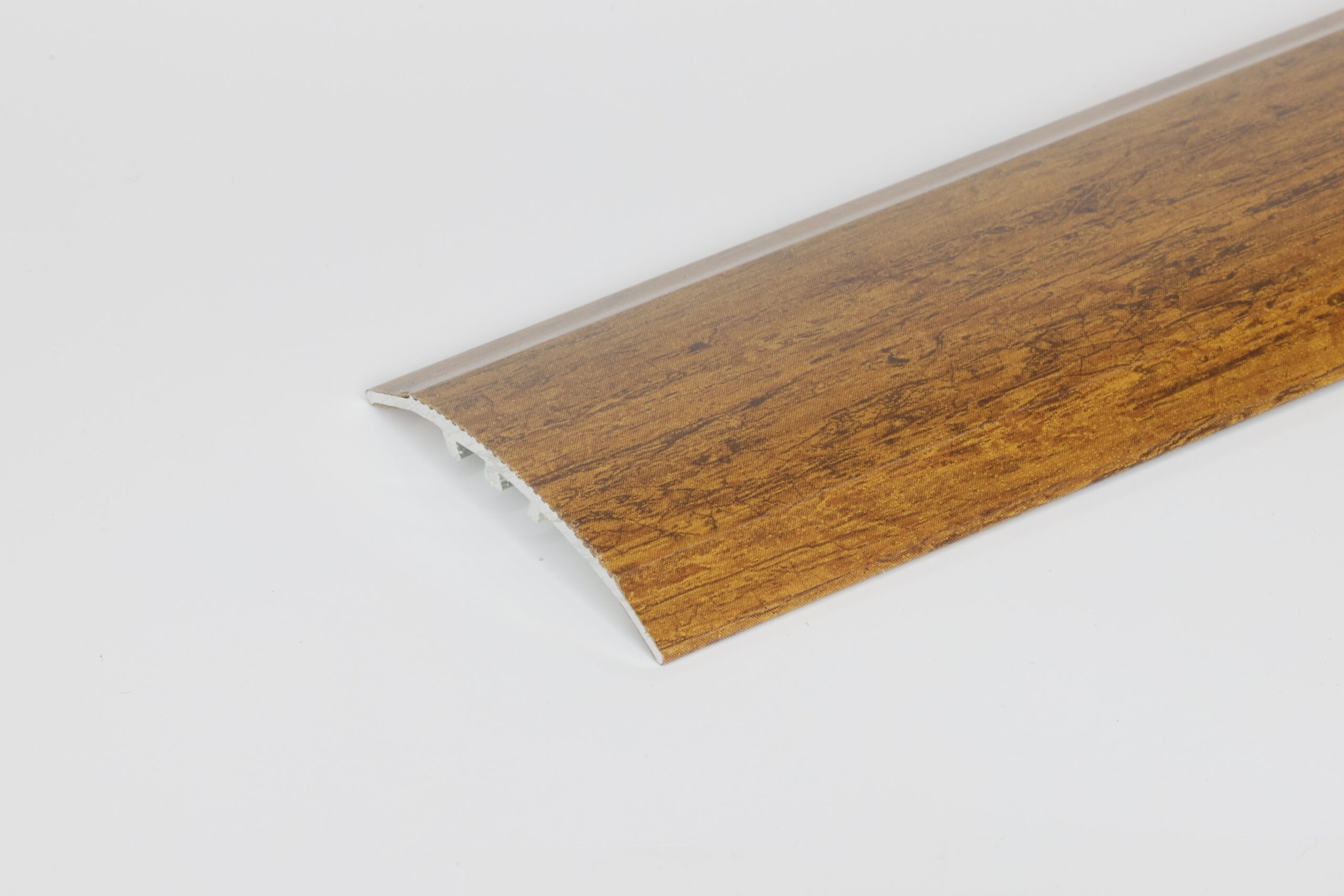

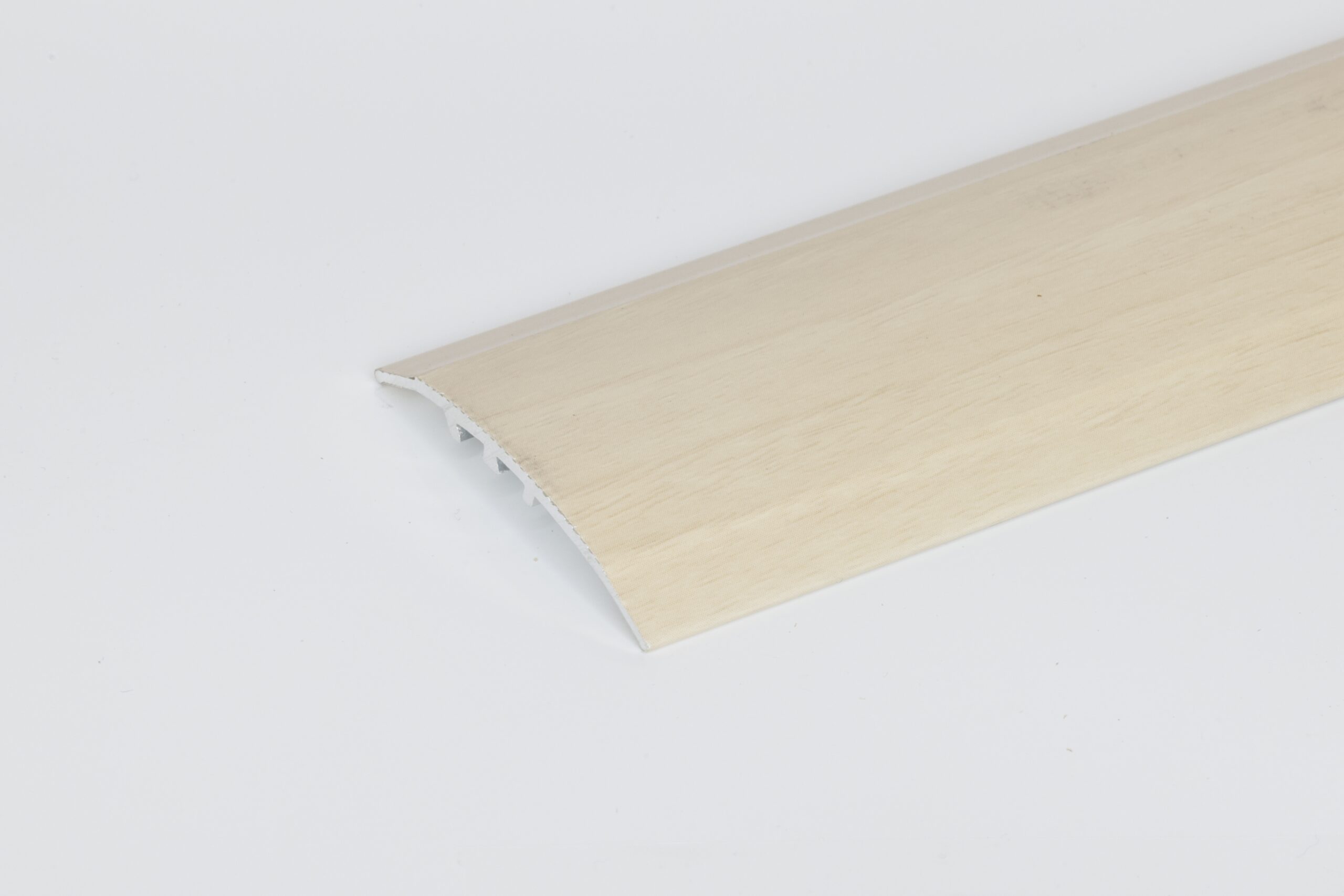

Universal Cover Trim
The Universal Cover Trim is used where timber or laminate joins another floor of the same level or slightly different height. Most often used where timber or laminate meets existing floor coverings such as stretch carpet, cork, tiles or other existing coverings that are slightly higher or lower than the flooring being installed or as an expansion trim for large area floors.

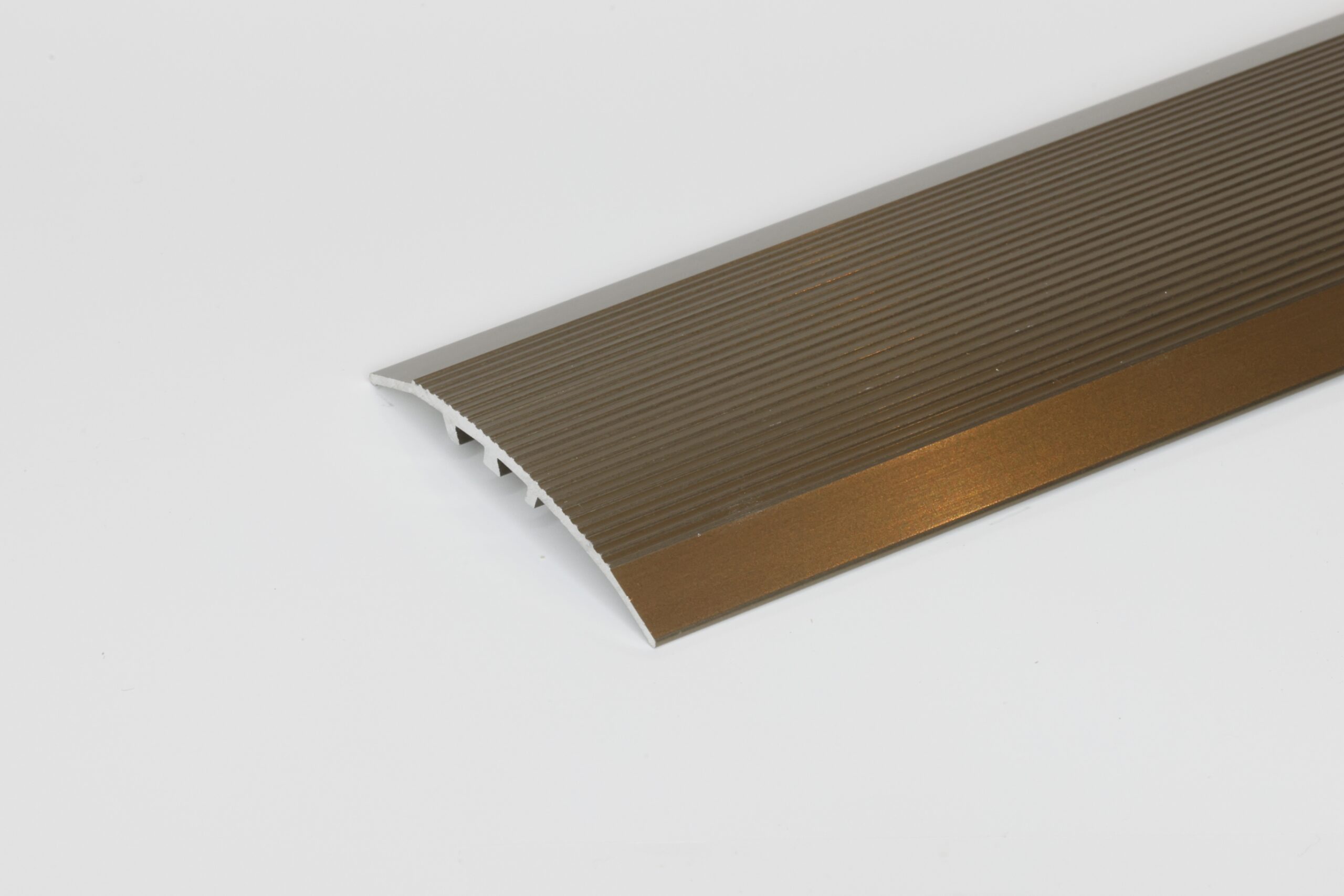

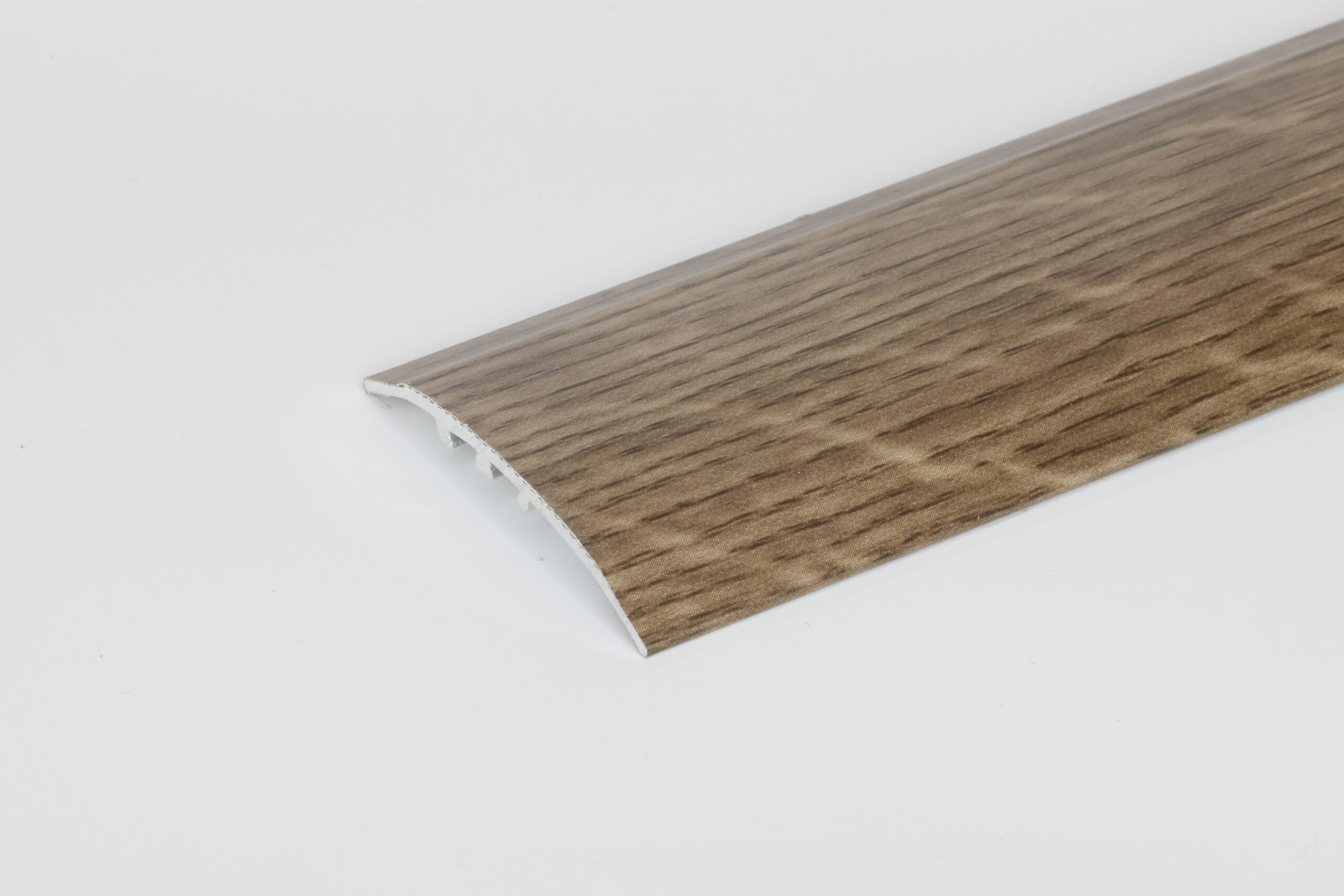

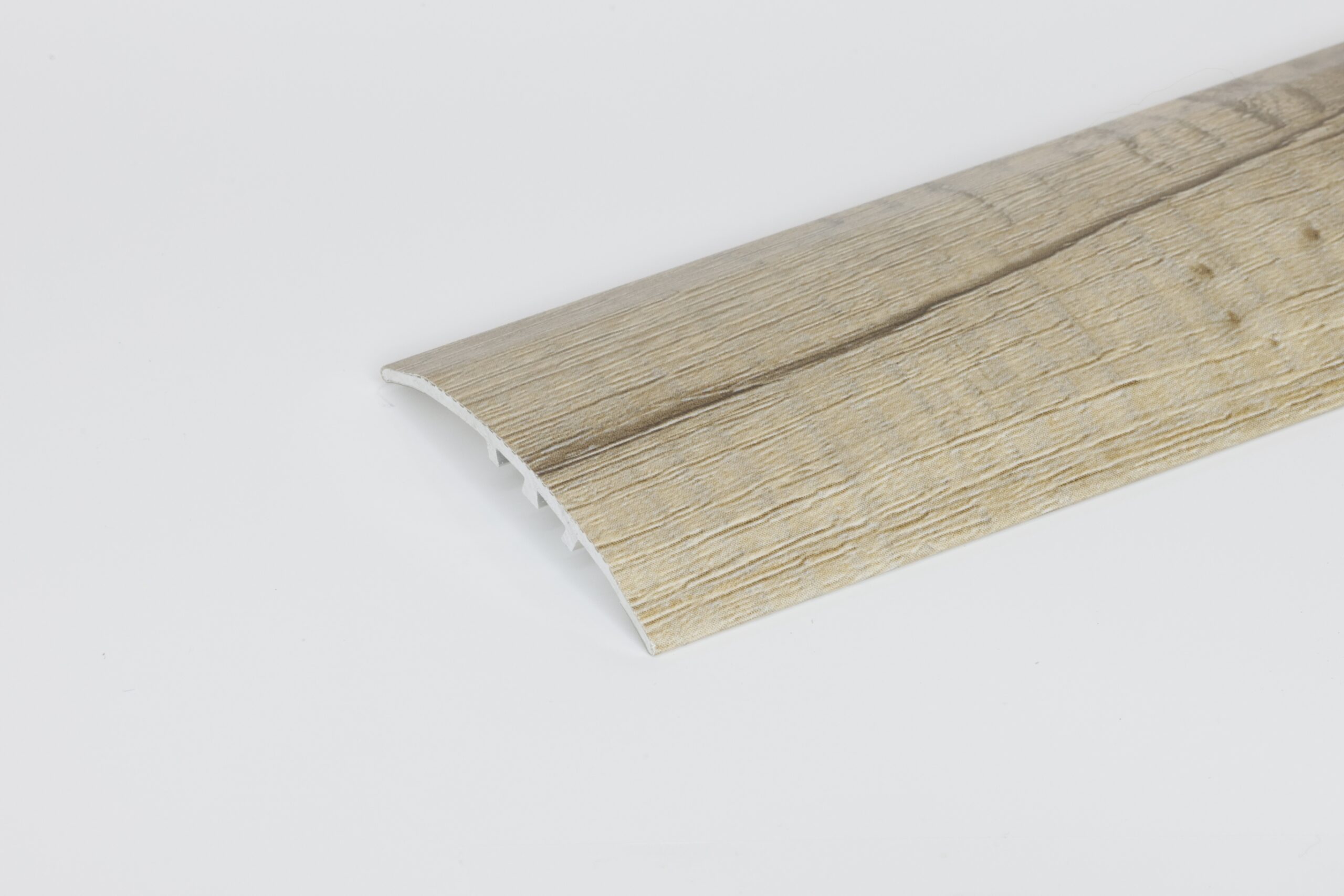

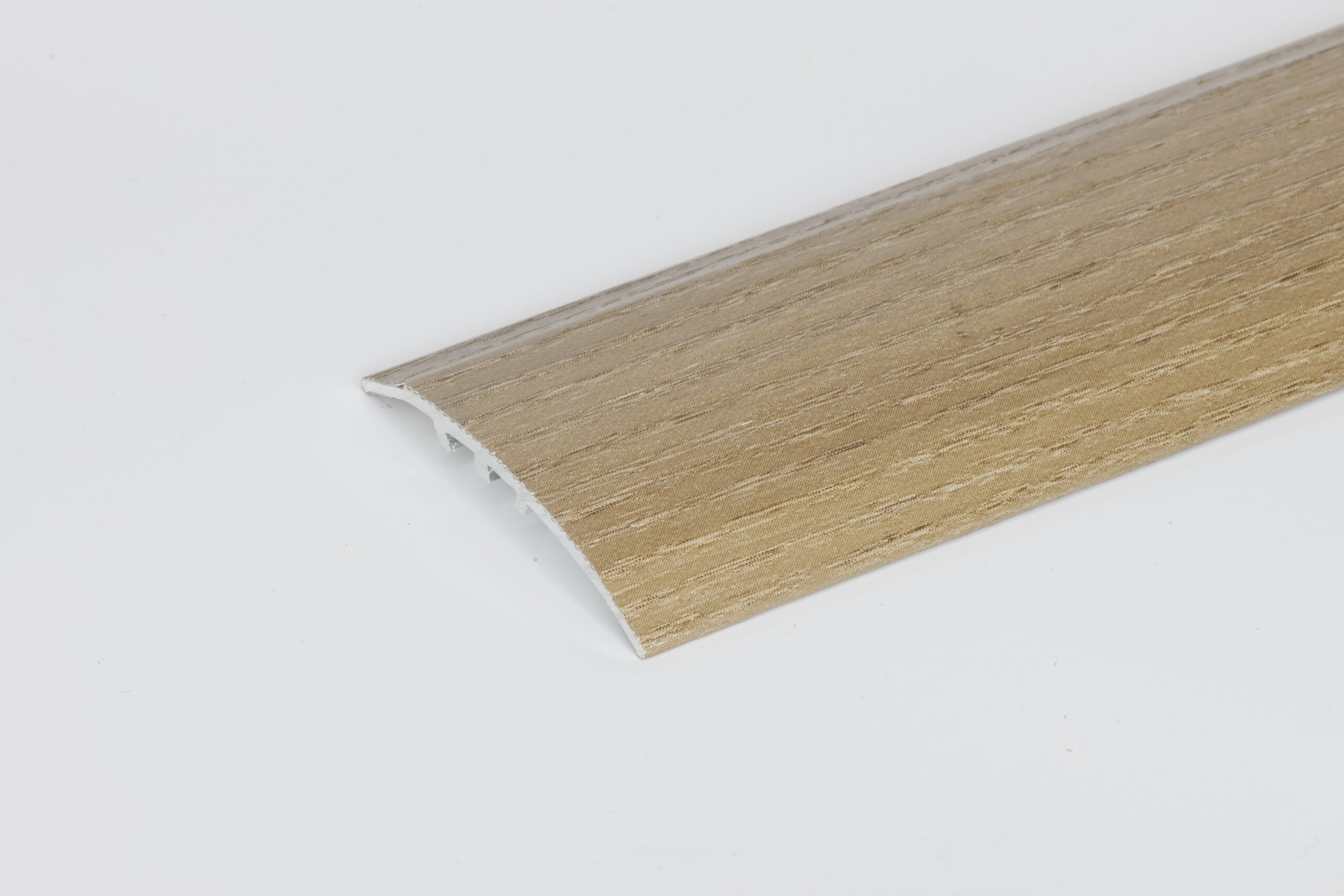

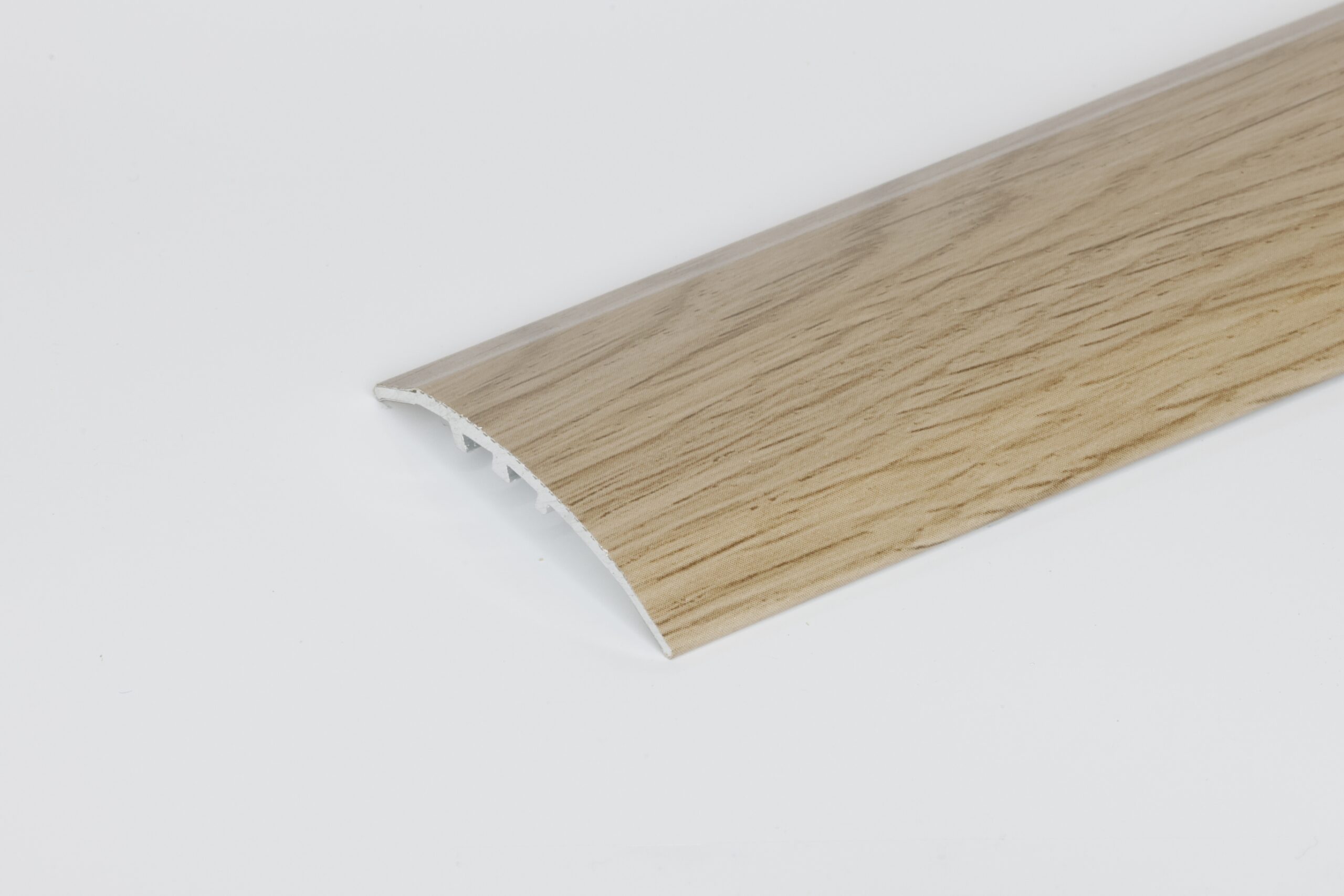

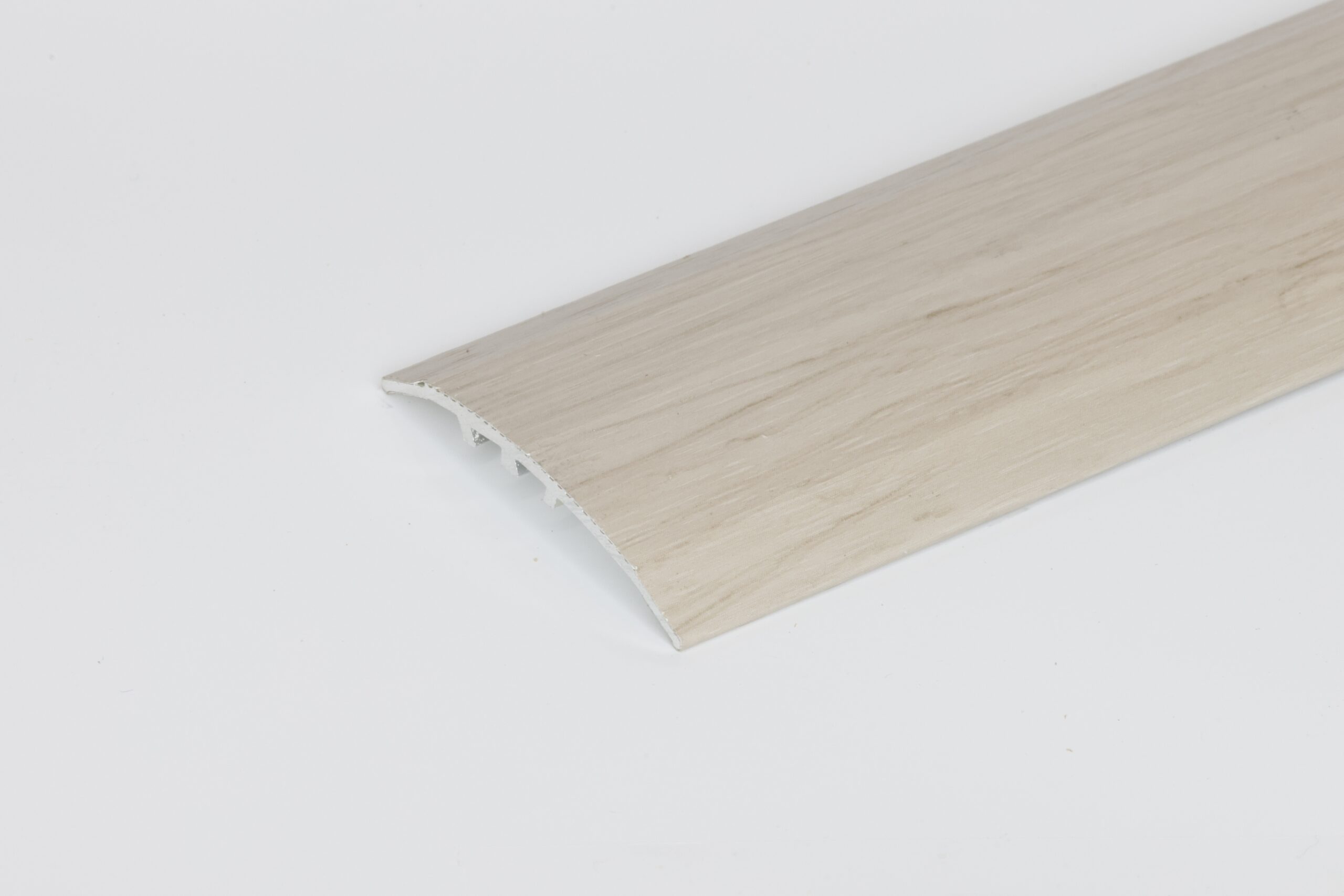

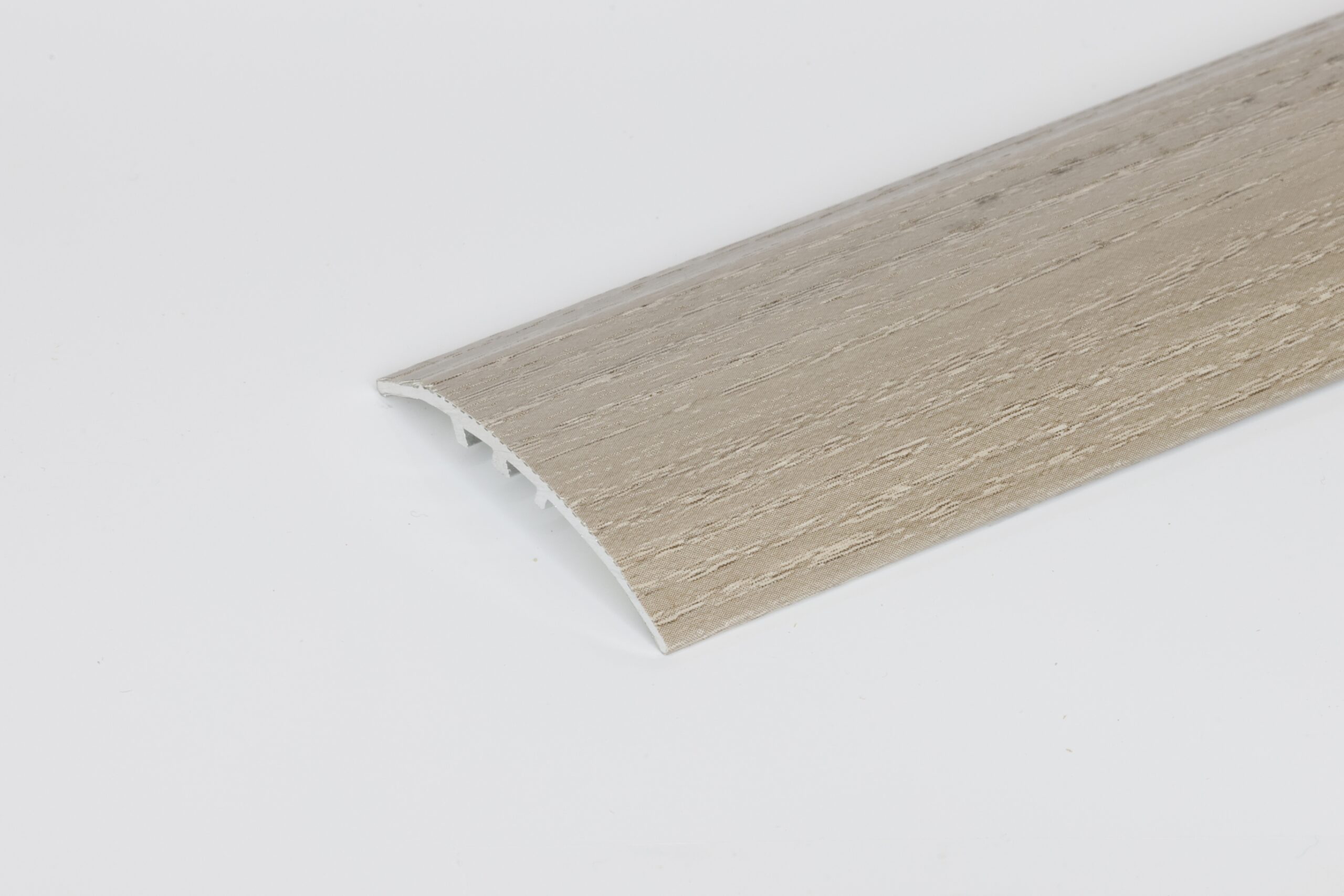

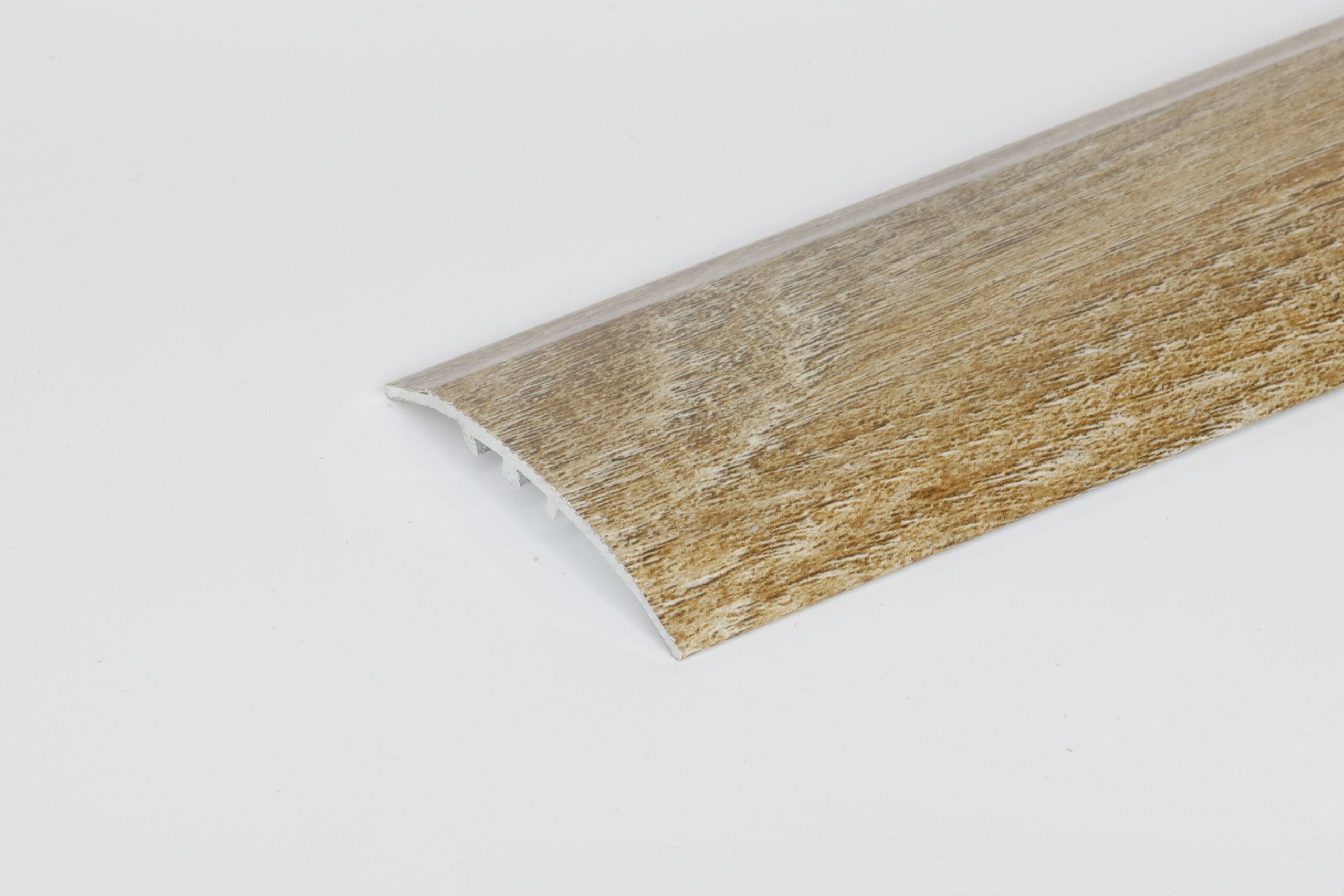

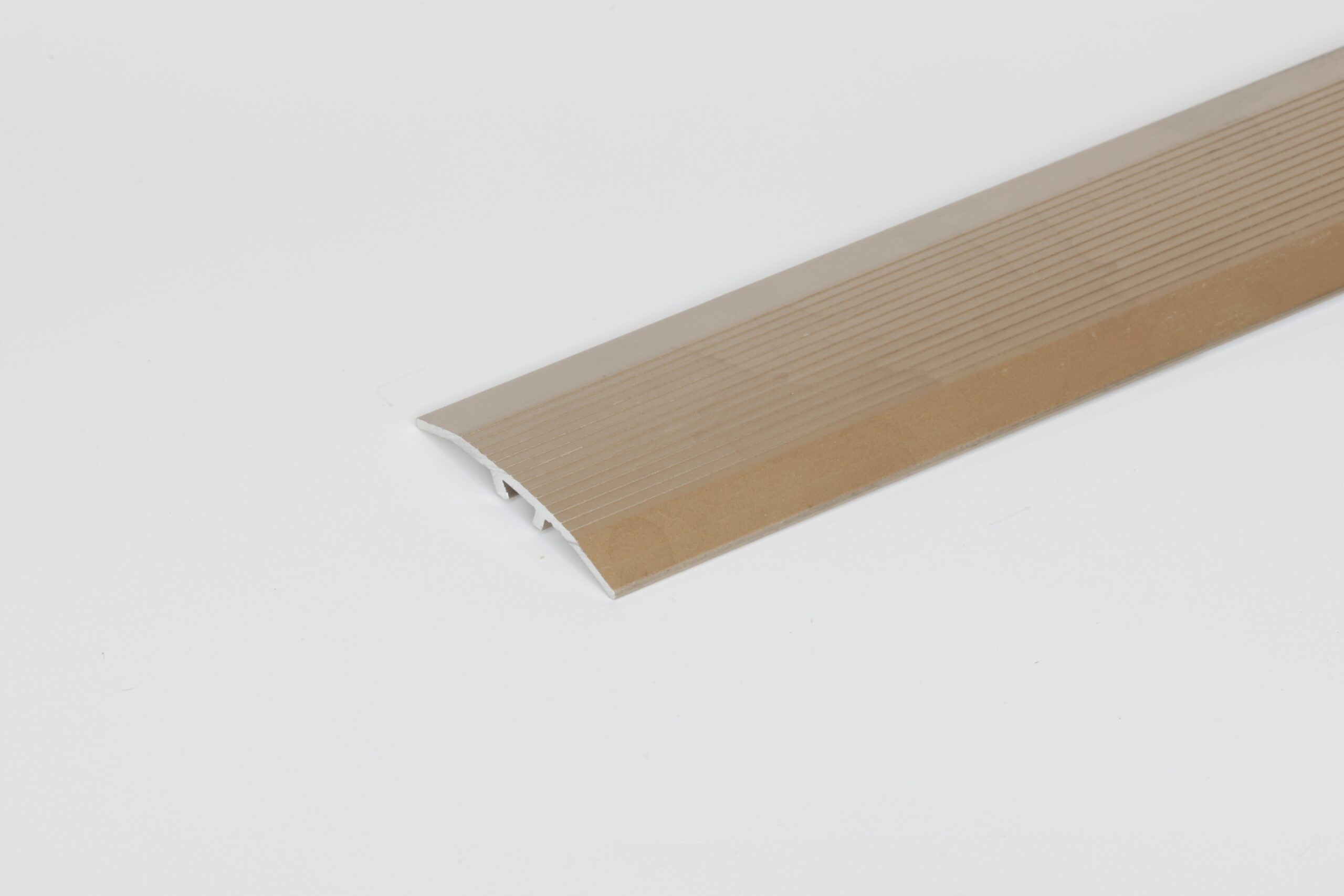

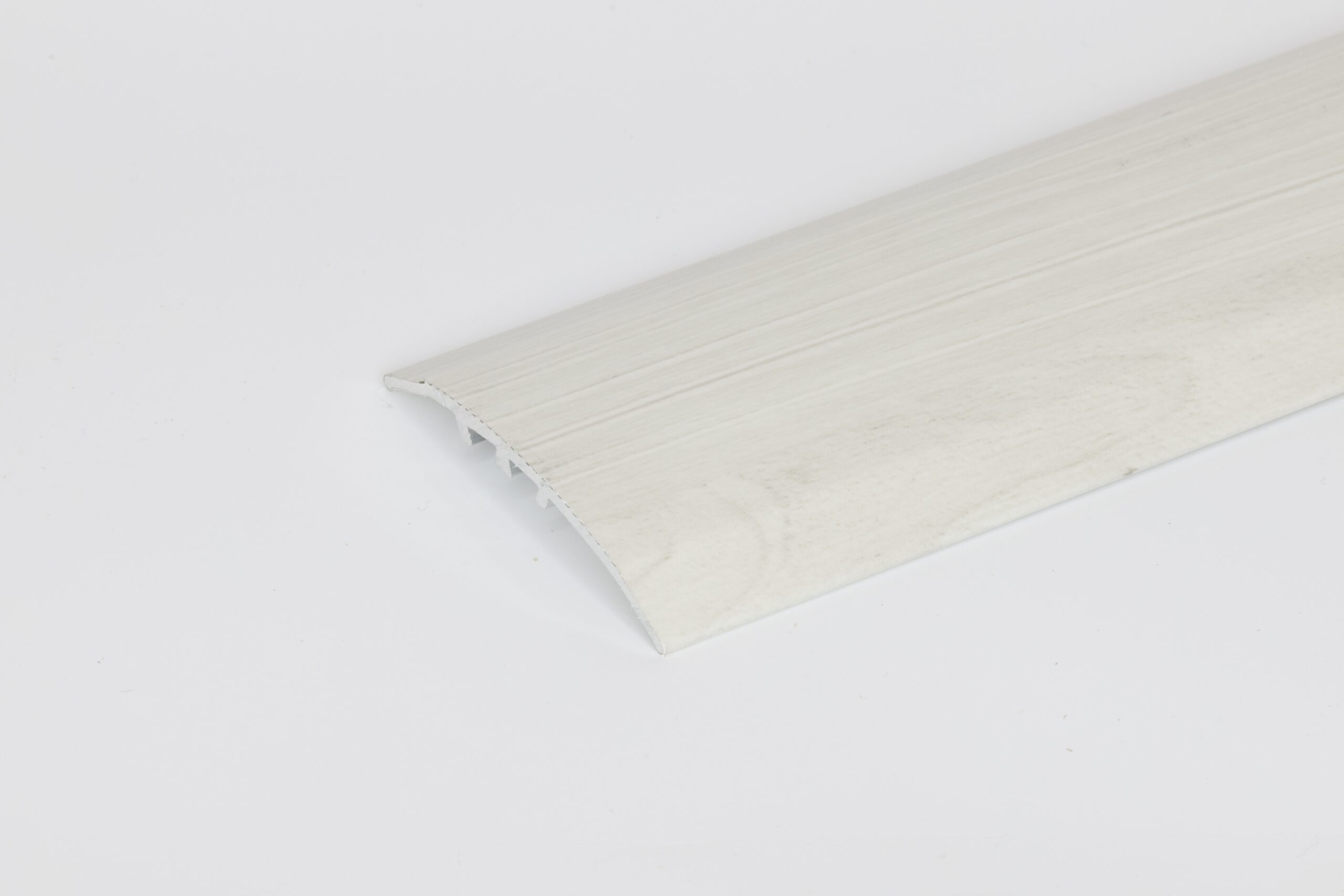

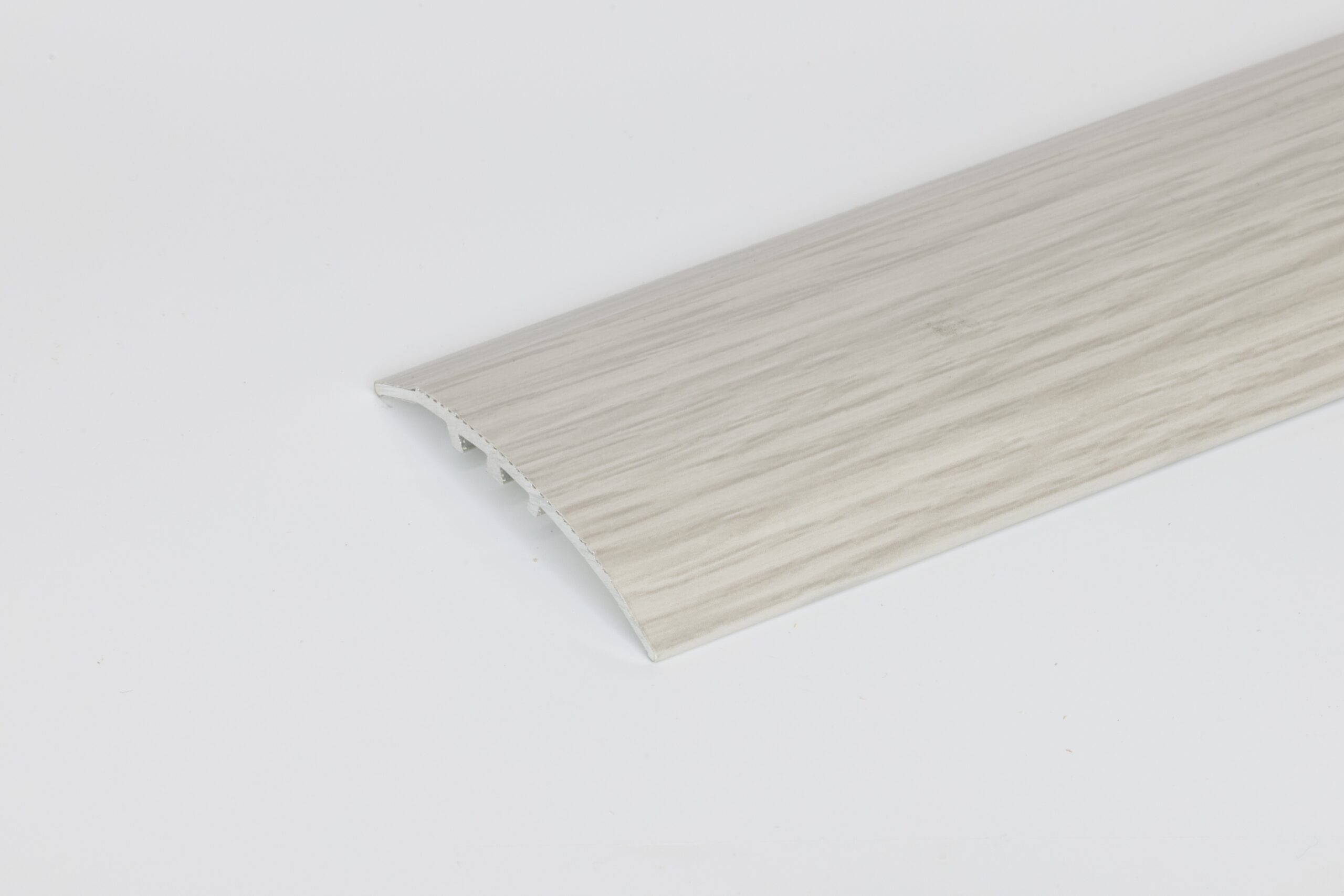

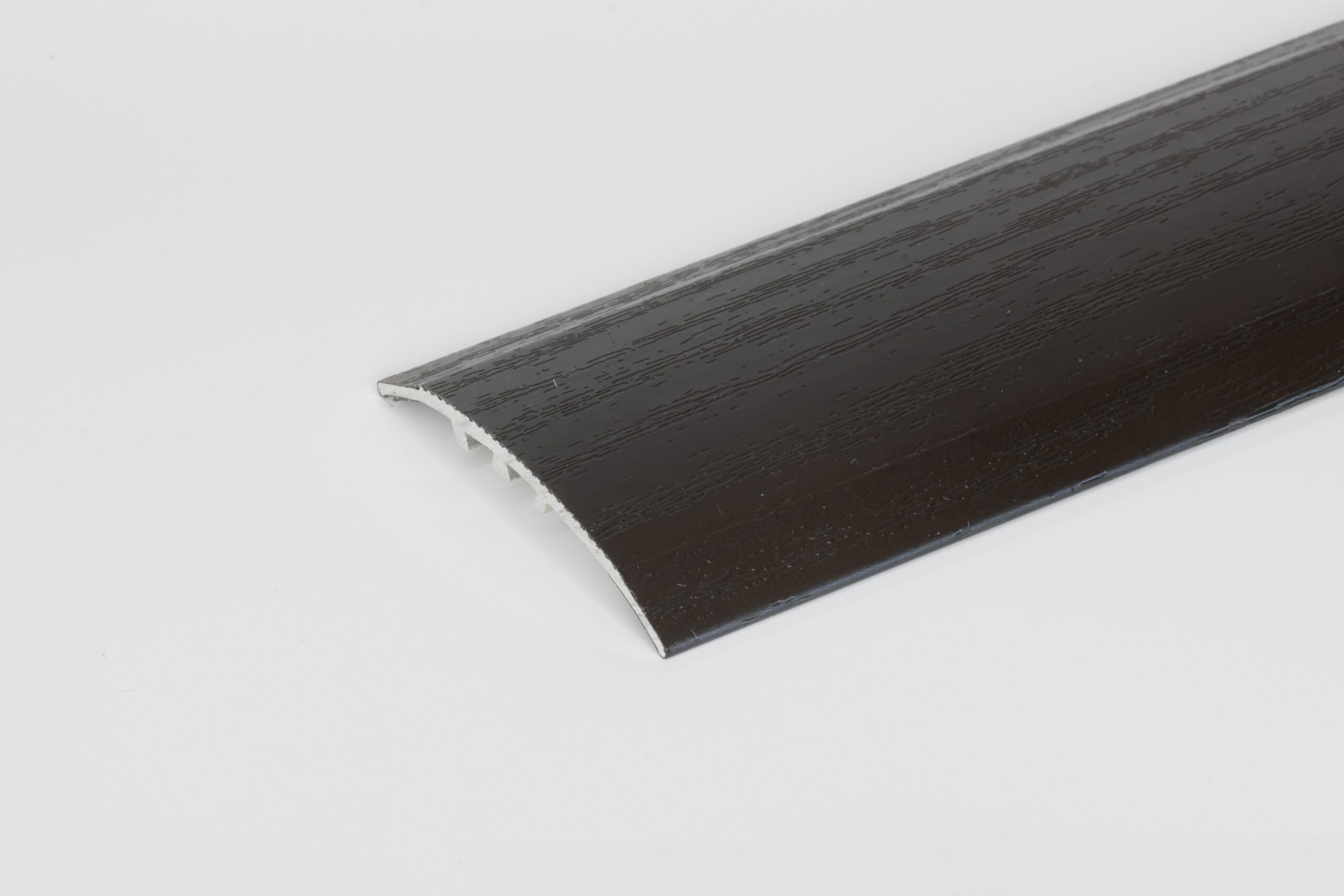

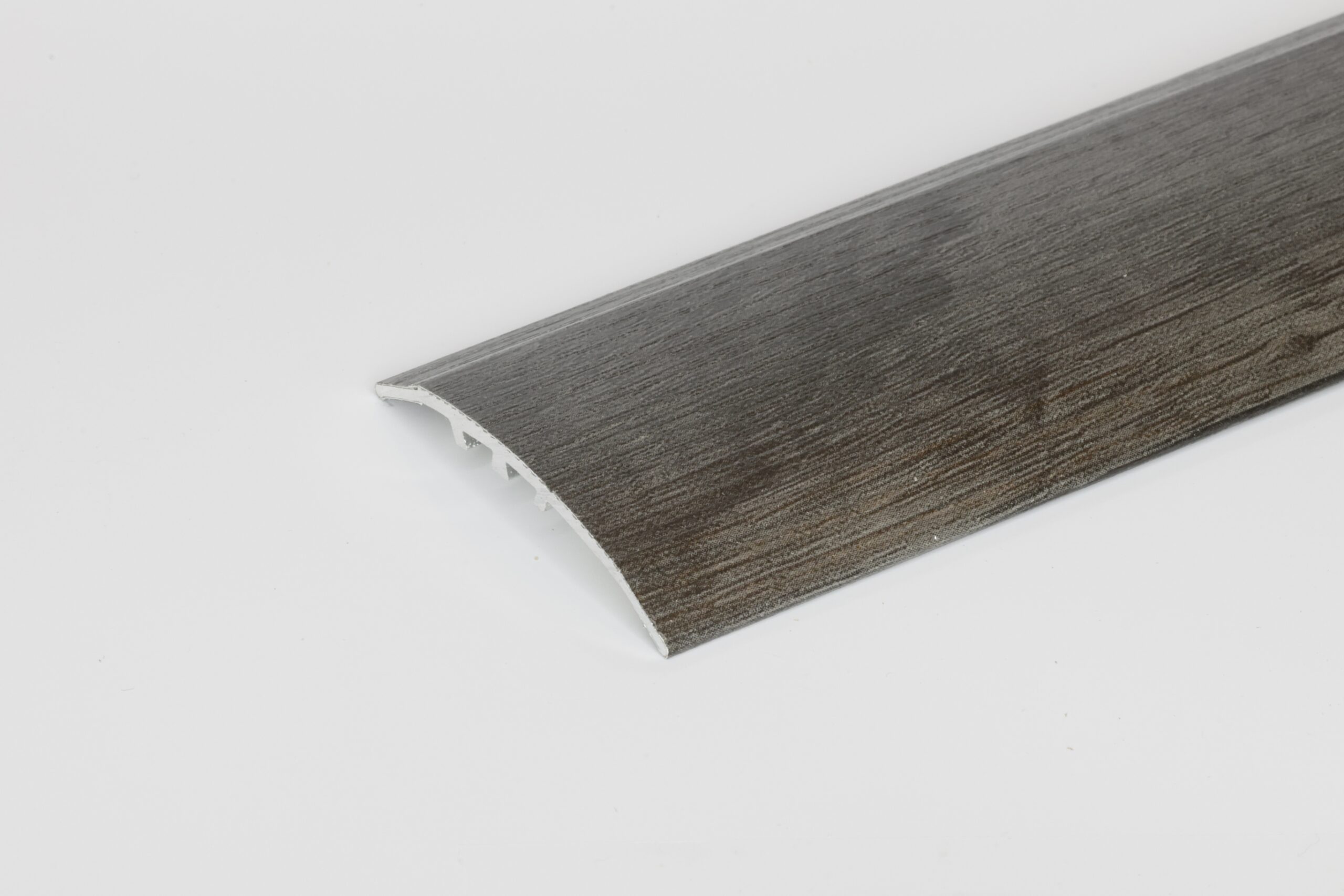

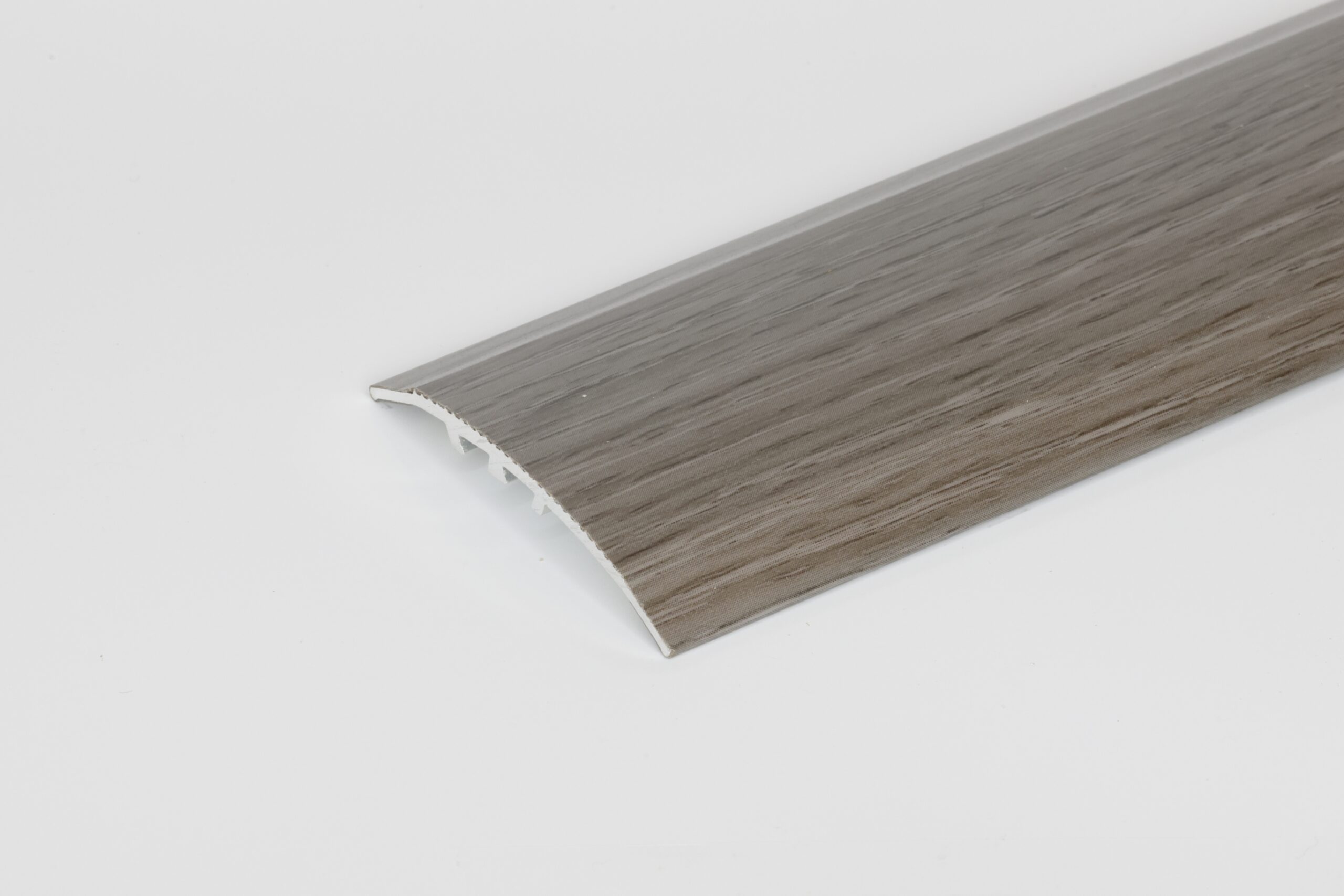

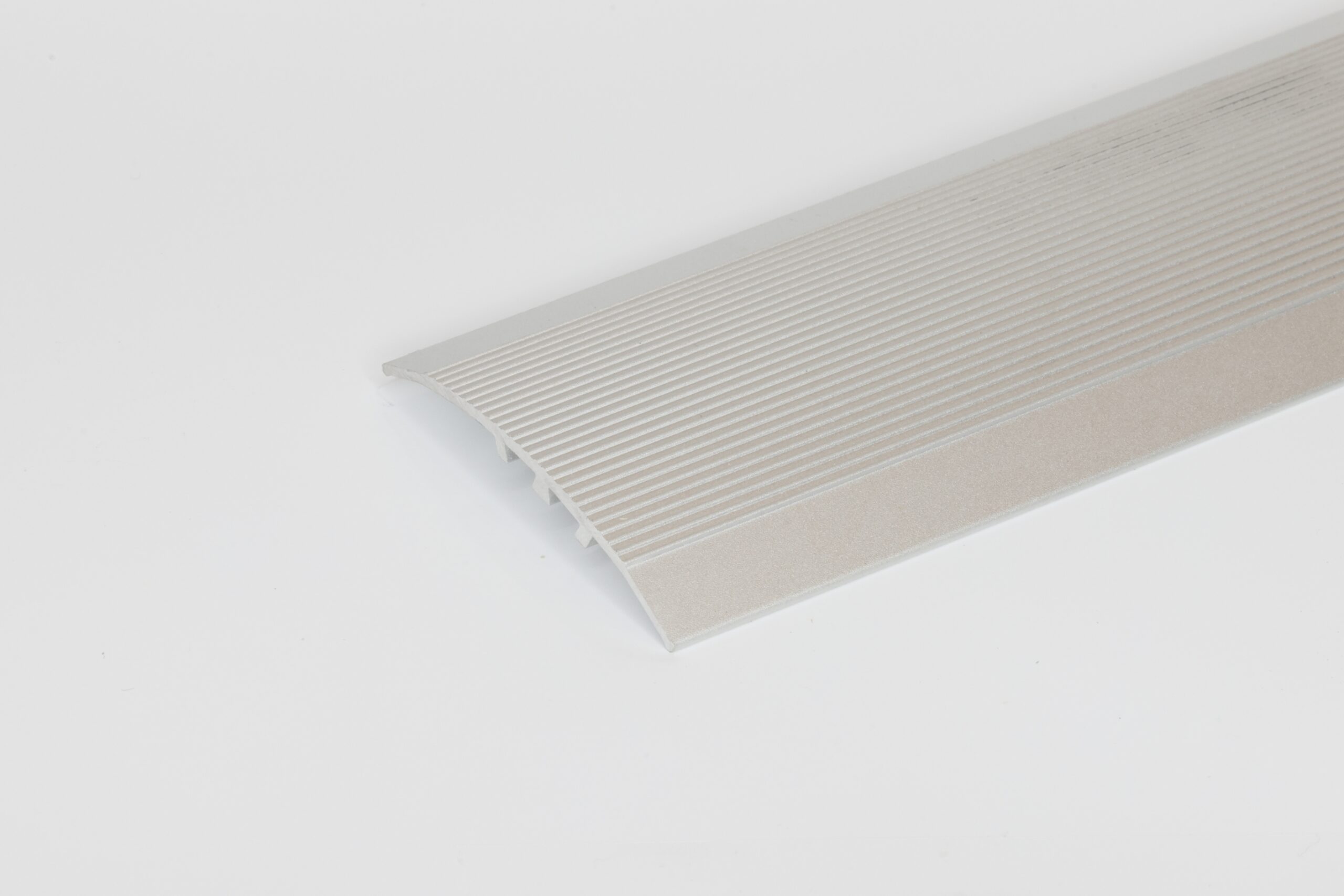

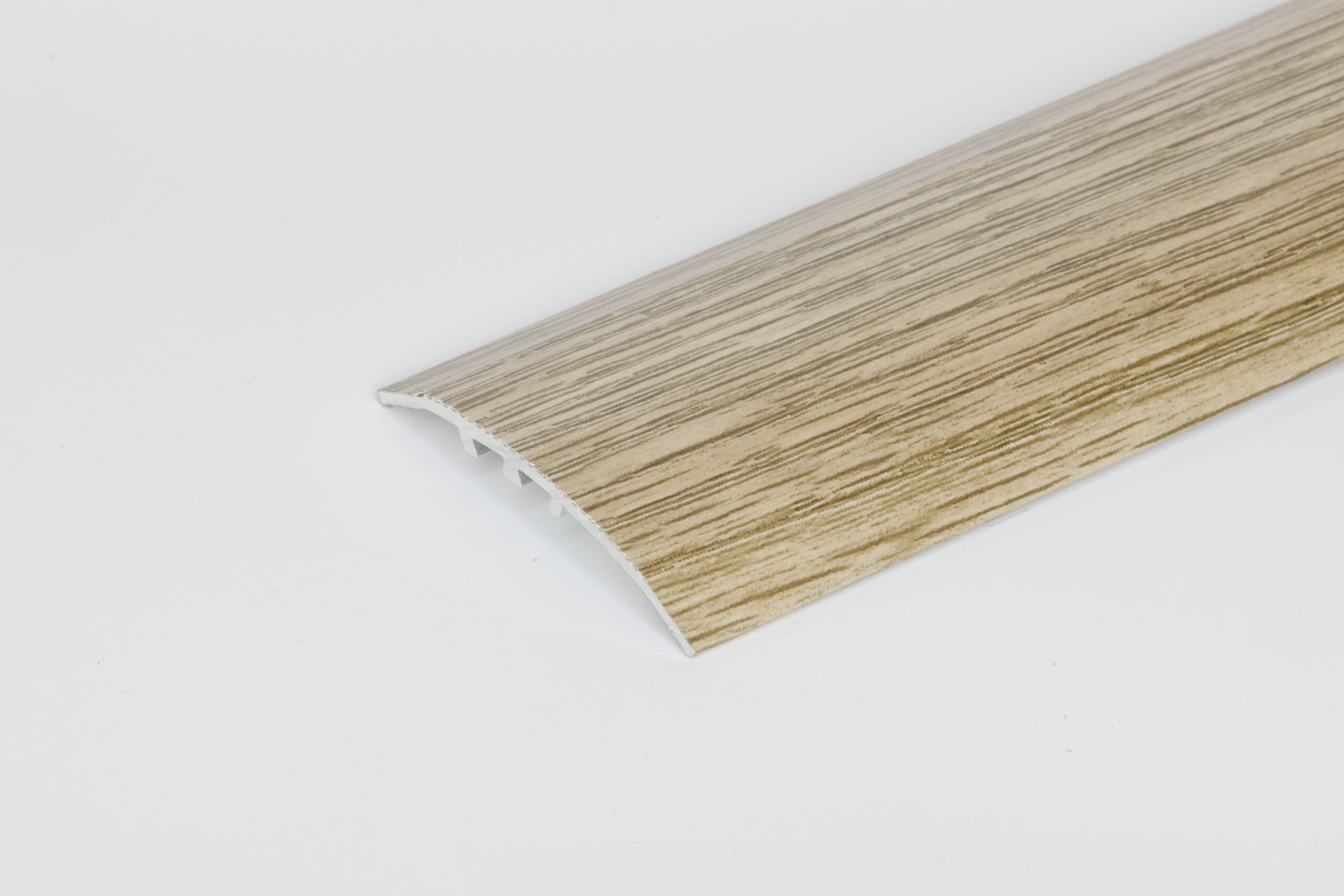

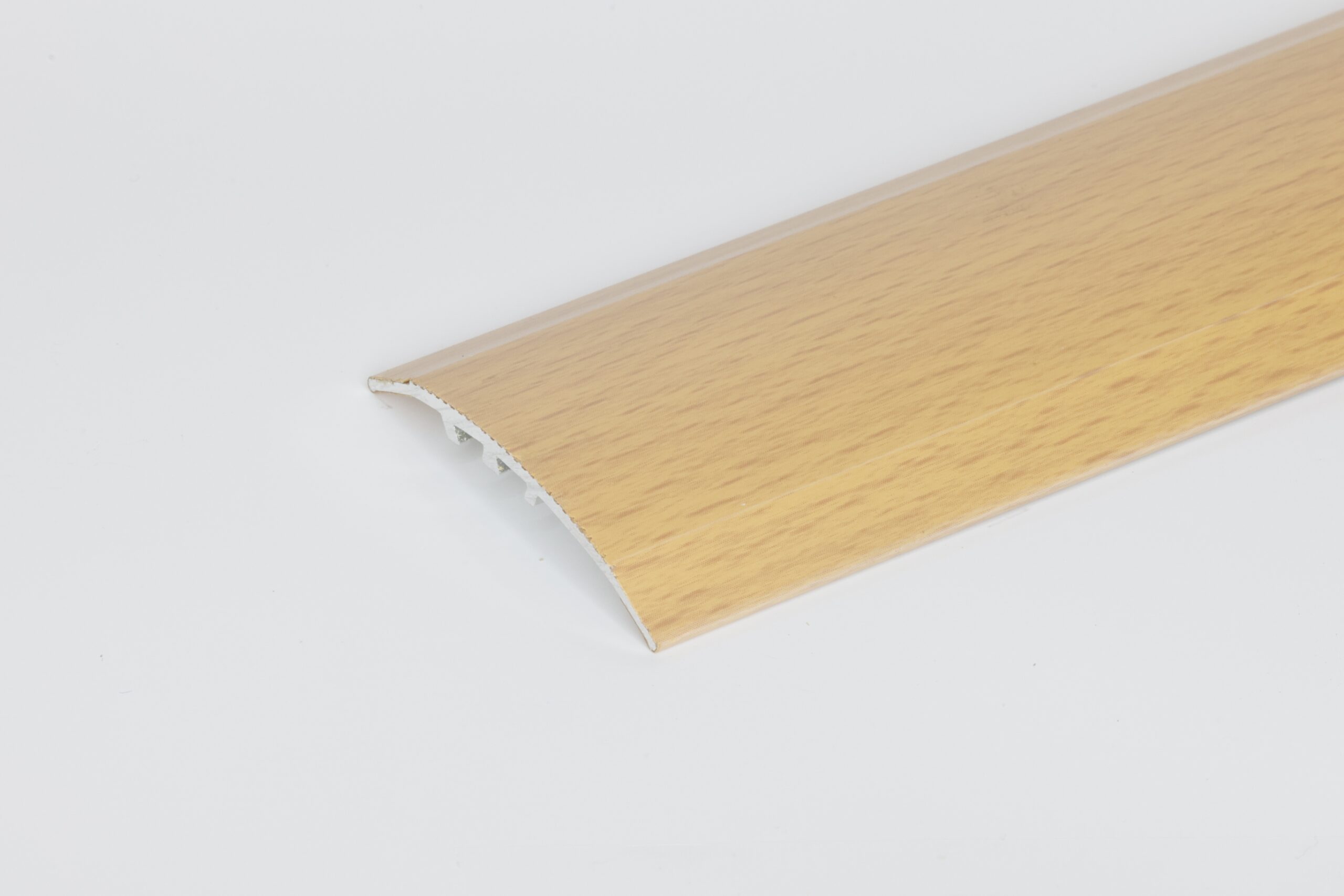

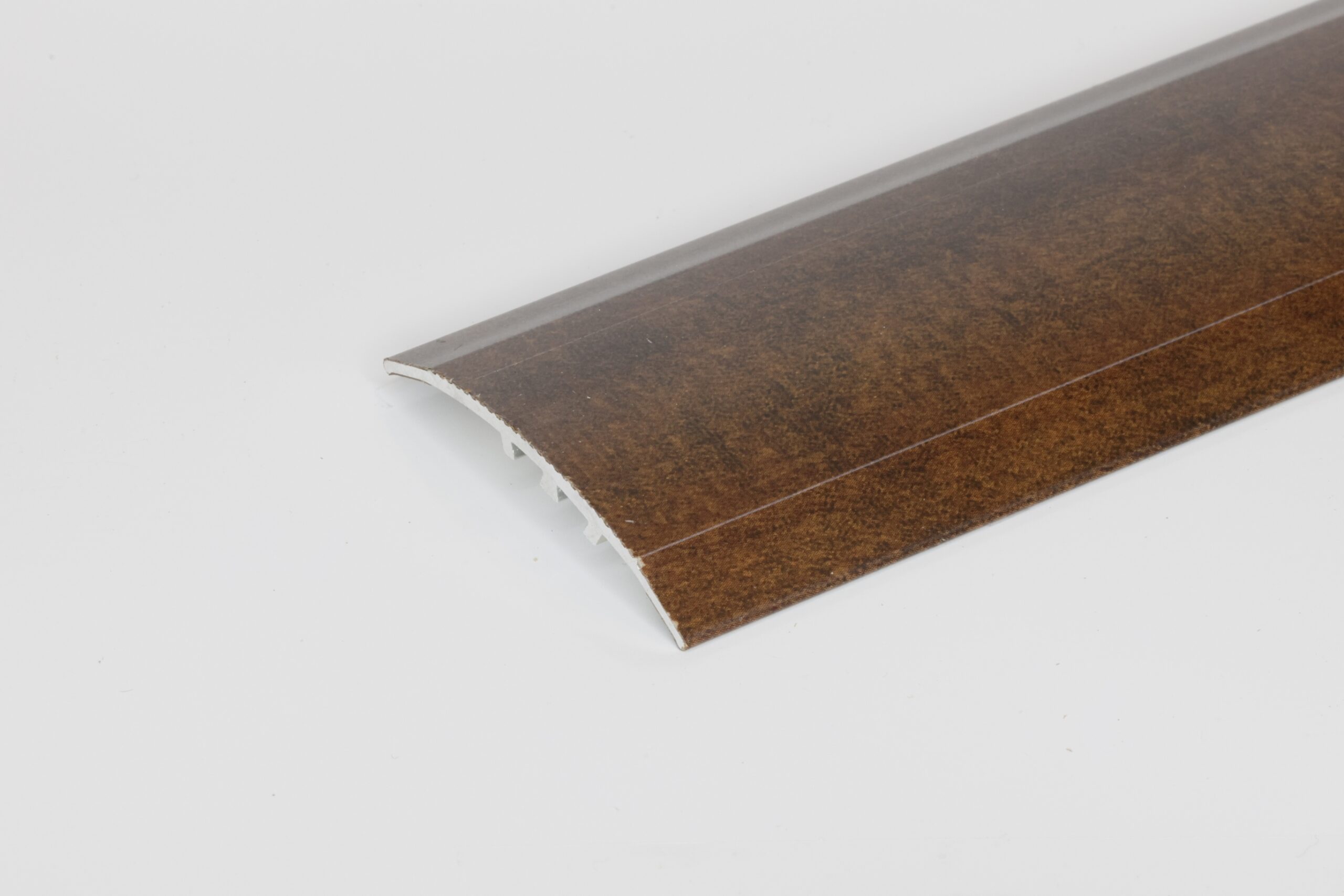

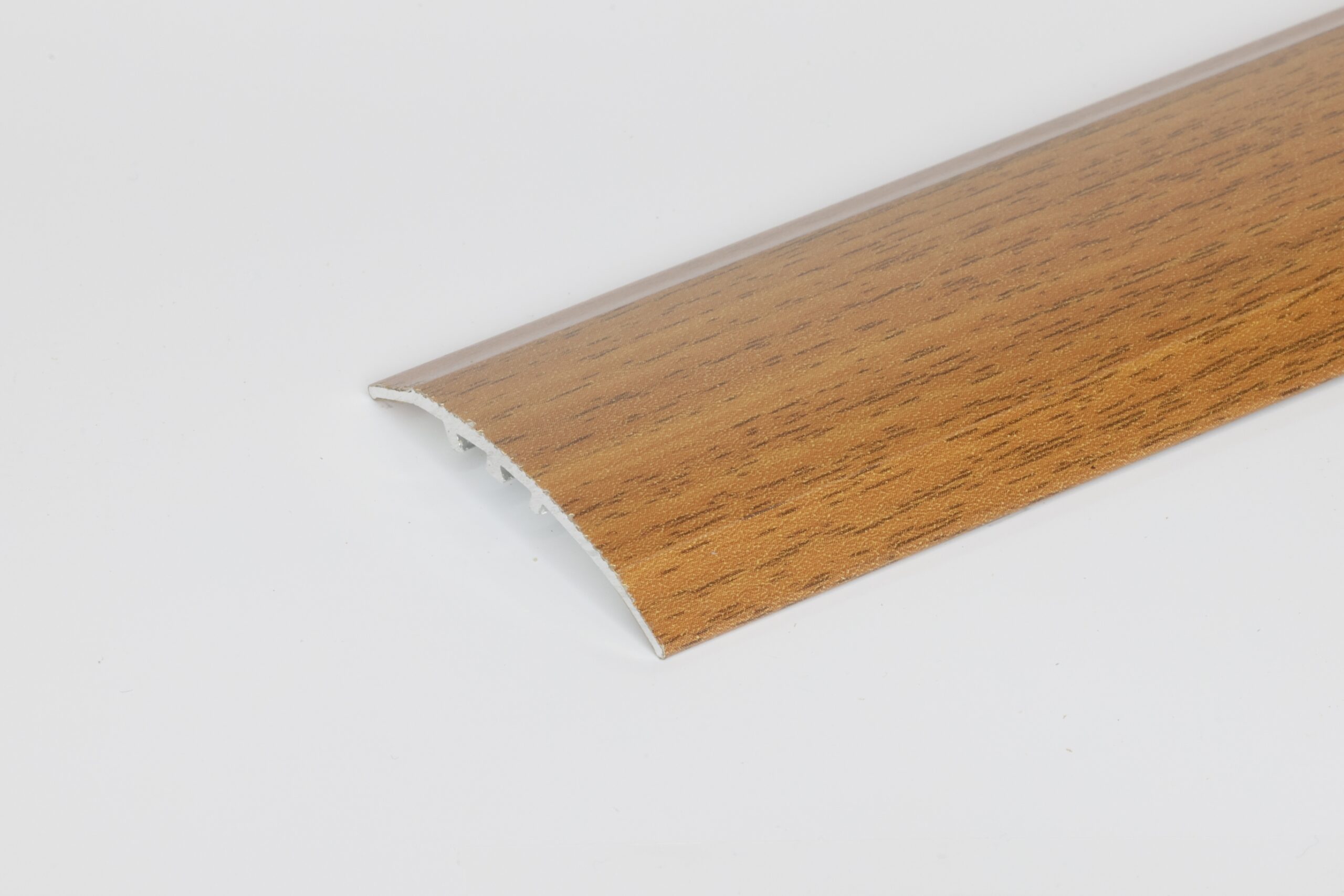

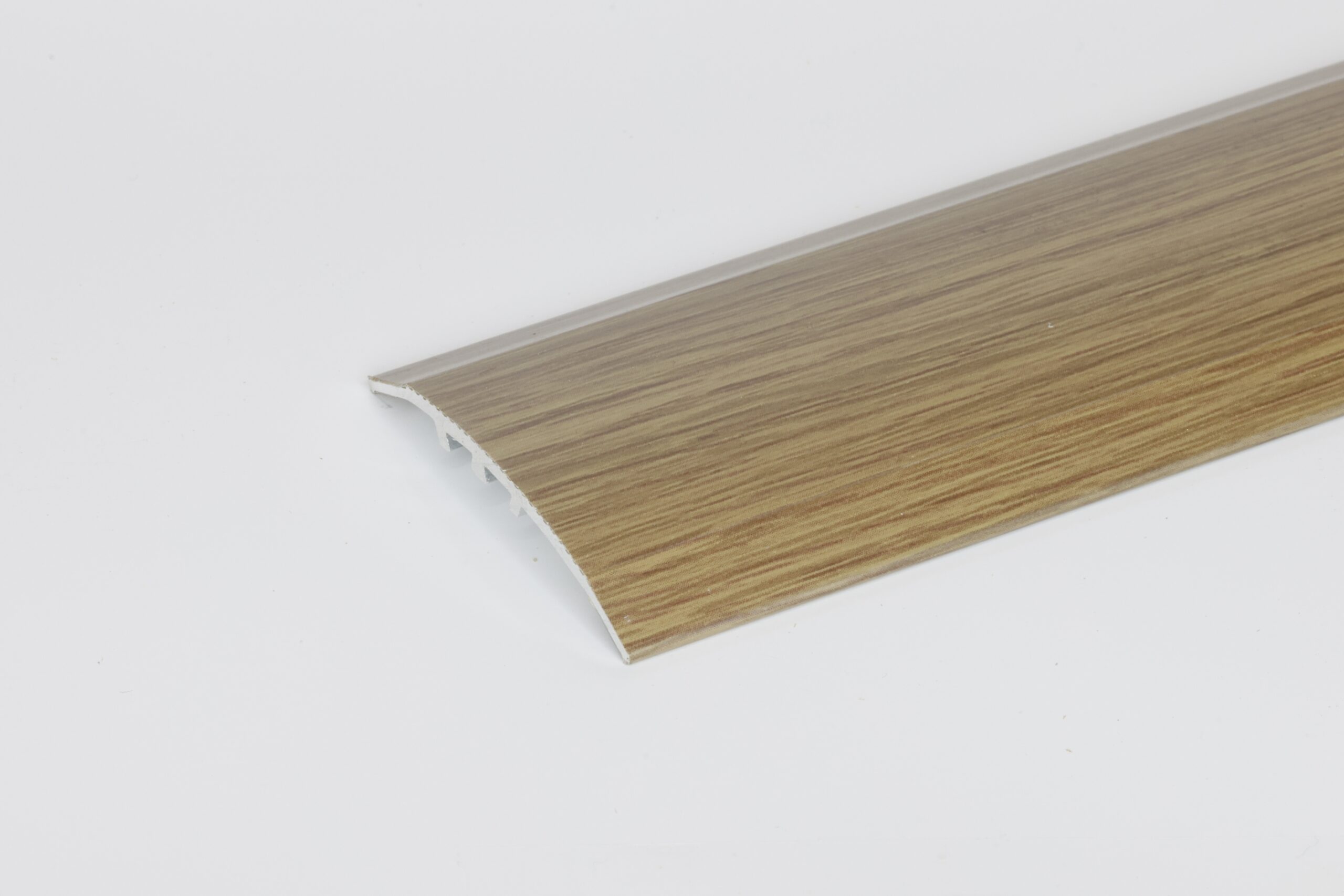

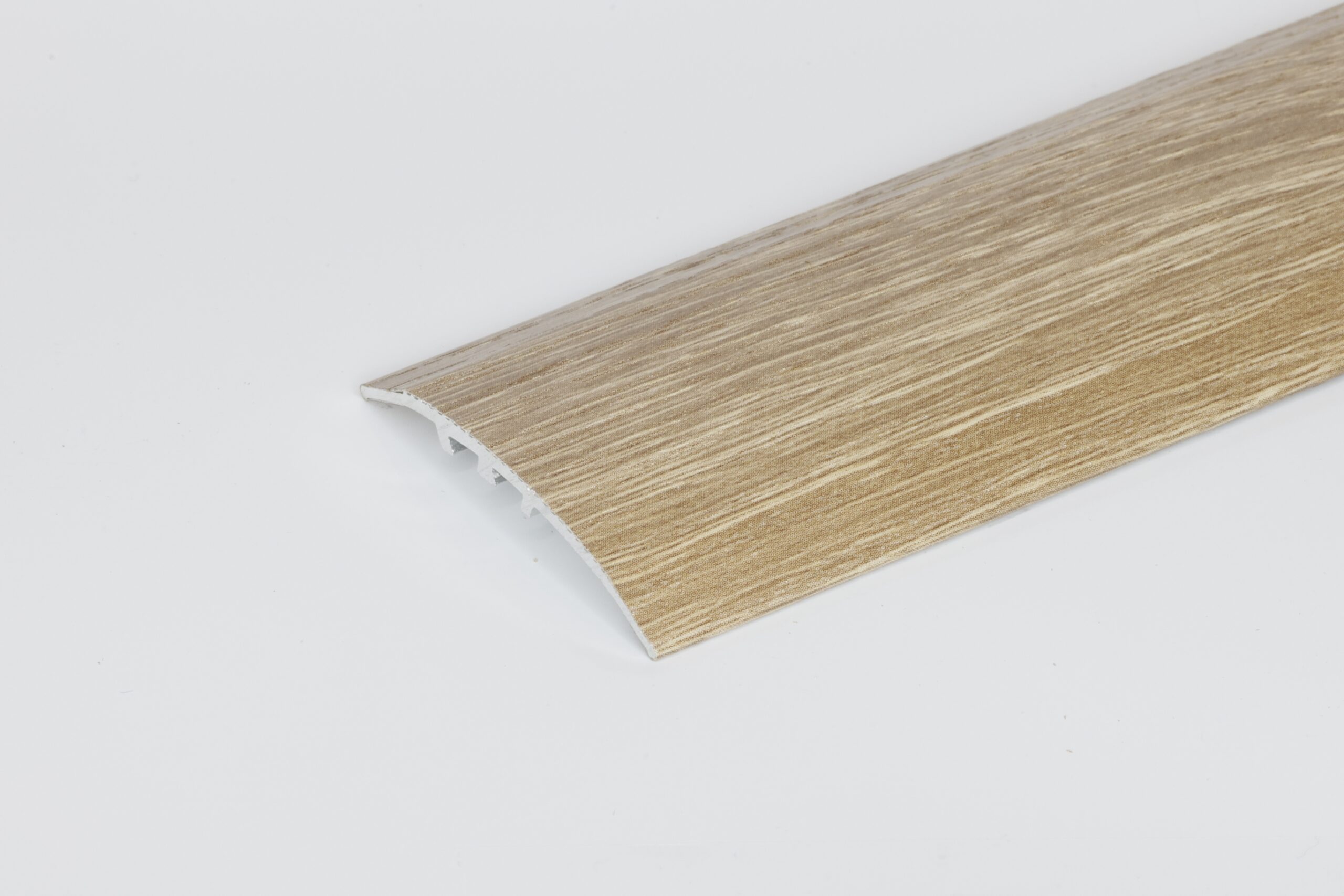

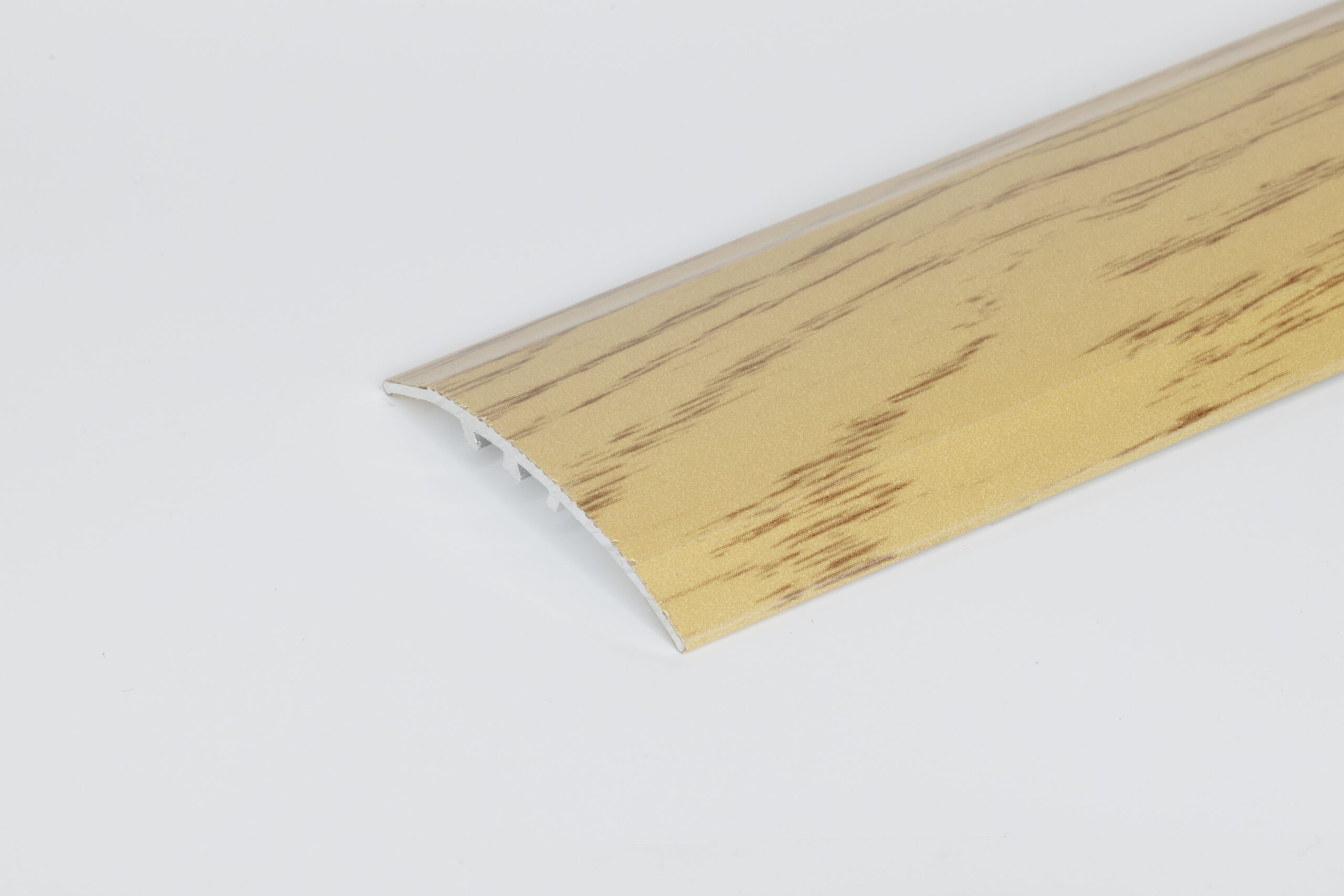

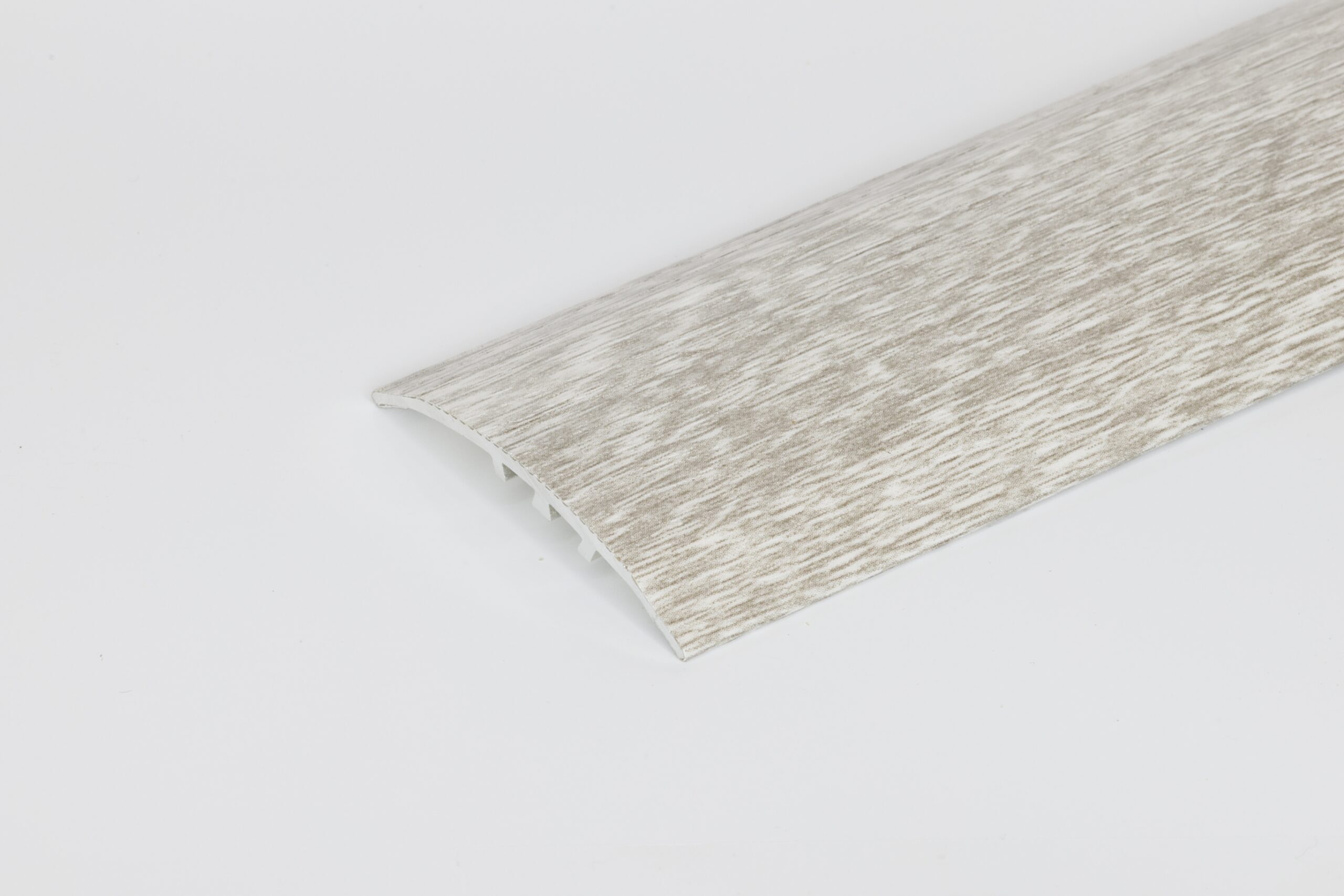

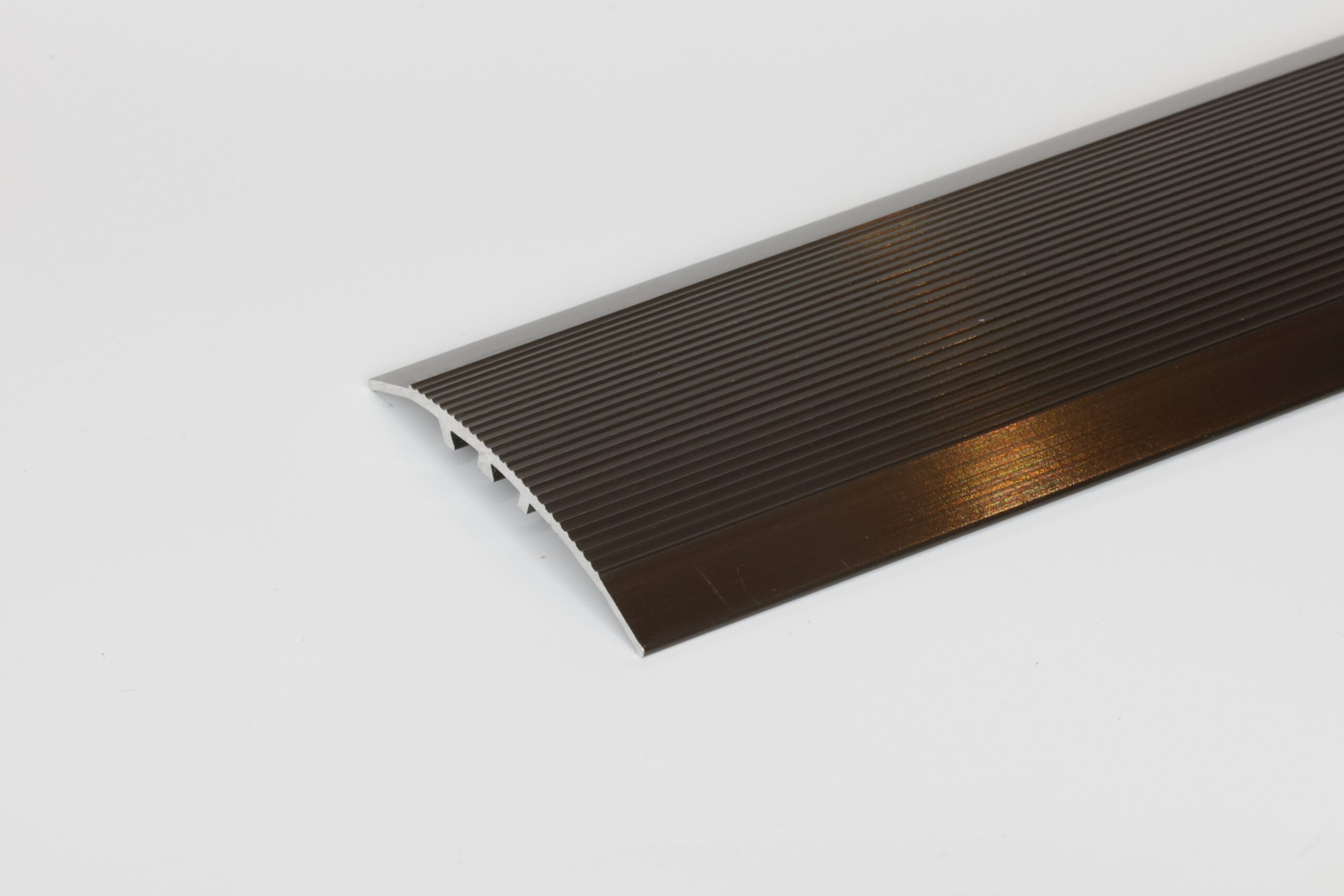

This trim is available in 35 vinyl wrapped wood colours and 4 metal colours Champagne, Silver, Rose and Bronze. (As seen below in the photographs.) The Universal Cover trim is designed for use in light commercial and domestic projects. This trim is not designed to be load bearing (trolleys etc.)
To install the Universal Cover Trim, firstly the base plate is glued to the floor and then the correct plastic insert is slotted into the cover trim and then pushed into the base plate to “clamp’ down to the floor, once the flooring is installed. It has a 45mm top cover and is available in 3.4 mtr lengths. A base plate and insert is required. The 3.4mtr kits are available with four size options for the inserts to suit all flooring thicknesses.
Stair Nosing Trims
Senior Stair Nosing (14mm), Mid Stair Nosing (12mm), Junior Stair Nosing (5.5mm, 6.5mm & 8.4mm)
Stair Nosing is a trim used for finishing of steps and staircases neatly. This trim is adhered to the edge of the step using permanent construction adhesive and mechanically fixed where required.
This is used as a transition trim to join step treads and risers (upright, vertical part of the step neatly). The trim accommodates expansion for both tread and riser, and has a top coverage of 14mm. The profile is available in 35 vinyl wrapped wood colours and 4 metal colours Bronze, Rose, Champagne and Silver. (As shown below.)
The Stair Nosing Trim is designed for use in domestic and commercial applications. They are available in 3.4metre lengths.
Border Trims
Border Trim Range – Flooring Heights (7-22mm)
The Border trim profile can be used for a neat finishing against sliding doors, full length windows, tiled finishing edges.
The base profile is installed prior to the installation of the floor covering, with the top section and insert installed last of all. This is a great option for DIY installers in replacement for End Profiles. The top coverage of this trim is 26mm. Available in the full range of 35 vinyl (wood colours) and 4 metal finishes and is 3.4 metres in length.
End Trim
Available in Senior Ends (14.5mm), Mid Ends (12.3mm), 3 Sized Junior Ends (5.5mm, 6.5mm, 8.4mm),
End Trims are one of the most common profiles.
They can be used for a neat finish against sliding doors, full height floor to ceiling windows, carpets, tiled areas and other floor finishings. This profile is glued to the floor and the floating floor slots into the trim, it has 19mm top coverage and is 3.4 metres in length.Available in the full range of 35 vinyl (wood colours) and 4 metal finishes.
Ramp Trim
Most often used where timber or laminate meets WPC/vinyl, direct stick carpet/carpet tiles or raw or polished concrete, this trim is available in Bronze, Silver, Rose and Champagne or a range of timber look, vinyl wrap colours.
The Ramp trim is designed for use in very light commercial and domestic use. It has a top cover of 45mm and is installed using a base plate and and a plastic clamp (8mm,12mm,14mm 17mm) system that holds the trim in position. The Ramp kits come with the senior insert and is 3.4 metres in length.
Multi Angle
Multi angle is used for coverage in tight fitting areas such as under dishwasher areas or areas where an end trim is not easily installed.
Multi Angles are available in both 5mm and 8mm
Available in the full range of 35 vinyl (wood colours) and 4 metal finishes and is 3.4 metres in length
